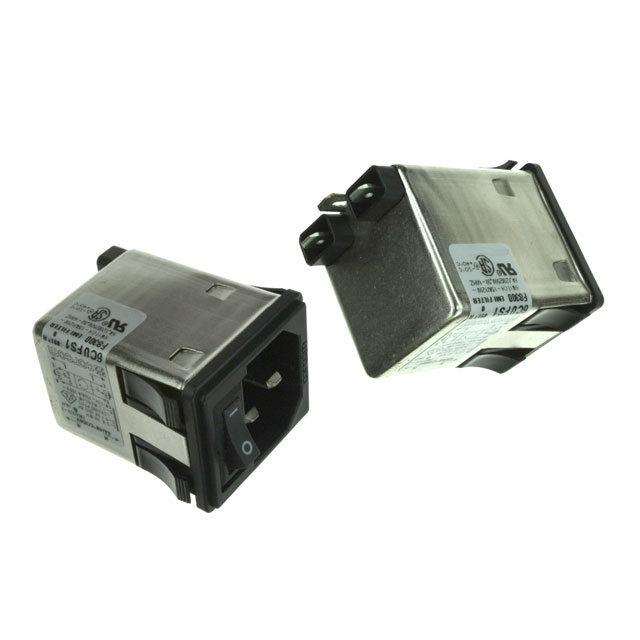

2-1609113-8
ActiveTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
2-1609113-8
ActiveTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1609113-8 | 1609113 Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 3 A | 3 - 15 A |
| Current Rating - Filter | 3 A | 3 - 15 A |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Flange, Snap-In |
| Panel Cutout Dimensions [x] | 28.1 mm | 28.1 mm |
| Panel Cutout Dimensions [y] | 31.9 mm | 31.9 mm |
| Panel Thickness | 4.06 mm | 4.06 mm |
| Panel Thickness [custom] | 0.16 in | 0.16 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC | 120 VAC |
1609113 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Voltage Rating - Appliance Inlet [Max] | Voltage Rating - Appliance Inlet [Min] | Connector Type | Filter Type | Mounting Type | Current Rating - Appliance Inlet | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination | Termination | Approval Agency | Connector Style | Accomodates a Fuse | Current Rating - Filter | Switch Features | Panel Thickness [custom] | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 2-1609113-4 | 250 VAC | 120 VAC | Receptacle, Male Blades - Module | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | 6 A | 28.1 mm | 31.9 mm | 0.189 ", 4.8 mm | Quick Connect | CSA, UL, VDE | IEC 320-C14 | 6 A | Switch On-Off | |||
TE Connectivity Corcom Filters 2-1609113-3 | 250 VAC | 120 VAC | Receptacle, Male Blades - Module | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | 3 A | 28.1 mm | 31.9 mm | 0.189 ", 4.8 mm | Quick Connect | CSA, UL, VDE | IEC 320-C14 | 3 A | Switch On-Off | |||
TE Connectivity Corcom Filters 2-1609113-2 | 250 VAC | 120 VAC | Receptacle, Male Blades - Module | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | 15 A | 28.1 mm | 31.9 mm | 0.189 ", 4.8 mm | Quick Connect | CSA, UL, VDE | IEC 320-C14 | 15 A | Switch On-Off | |||
TE Connectivity Corcom Filters 2-1609113-8 | 250 VAC | 120 VAC | Receptacle, Male Blades - Module | Filtered (EMI, RFI) - Commercial | Panel Mount, Snap-In | 3 A | 28.1 mm | 31.9 mm | 0.189 ", 4.8 mm | Quick Connect | CSA, UL, VDE | IEC 320-C14 | 3 A | Switch On-Off | 0.16 in | 4.06 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.04 | |
| 10 | $ 23.68 | |||
| 42 | $ 21.92 | |||
| 84 | $ 21.19 | |||
| 252 | $ 20.02 | |||
| 504 | $ 19.44 | |||
Description
General part information
1609113 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
