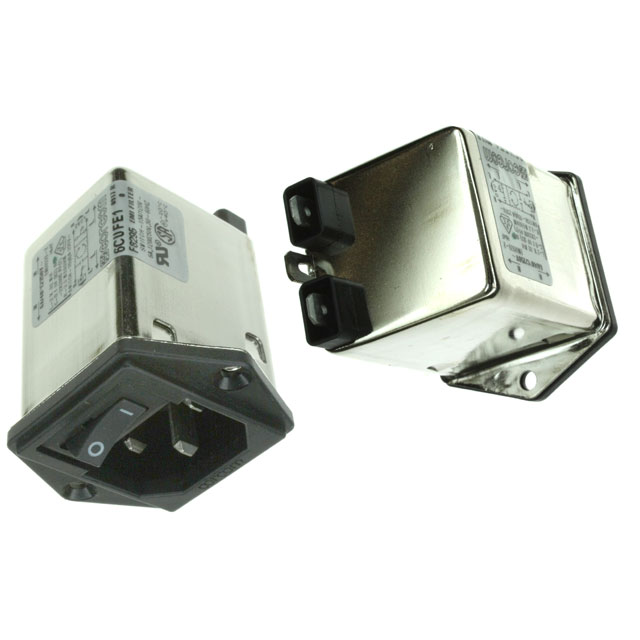

2-1609113-2

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1609113-2	1609113 Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	15 A	3 - 15 A
Current Rating - Filter	15 A	3 - 15 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Snap-In
Panel Cutout Dimensions [x]	28.1 mm	28.1 mm
Panel Cutout Dimensions [y]	31.9 mm	31.9 mm
Panel Thickness	-	0.16 in
Panel Thickness	-	4.06 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Connector Type	Filter Type	Mounting Type	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Termination	Approval Agency	Connector Style	Current Rating - Filter	Switch Features	Panel Thickness [custom]	Panel Thickness
TE Connectivity Corcom Filters 2-1609113-4	250 VAC	120 VAC	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	6 A	28.1 mm	31.9 mm	0.189 ", 4.8 mm	Quick Connect	CSA, UL, VDE	IEC 320-C14	6 A	Switch On-Off
TE Connectivity Corcom Filters 2-1609113-3	250 VAC	120 VAC	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	3 A	28.1 mm	31.9 mm	0.189 ", 4.8 mm	Quick Connect	CSA, UL, VDE	IEC 320-C14	3 A	Switch On-Off
TE Connectivity Corcom Filters 2-1609113-2	250 VAC	120 VAC	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	15 A	28.1 mm	31.9 mm	0.189 ", 4.8 mm	Quick Connect	CSA, UL, VDE	IEC 320-C14	15 A	Switch On-Off
TE Connectivity Corcom Filters 2-1609113-8	250 VAC	120 VAC	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	Panel Mount, Snap-In	3 A	28.1 mm	31.9 mm	0.189 ", 4.8 mm	Quick Connect	CSA, UL, VDE	IEC 320-C14	3 A	Switch On-Off	0.16 in	4.06 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
