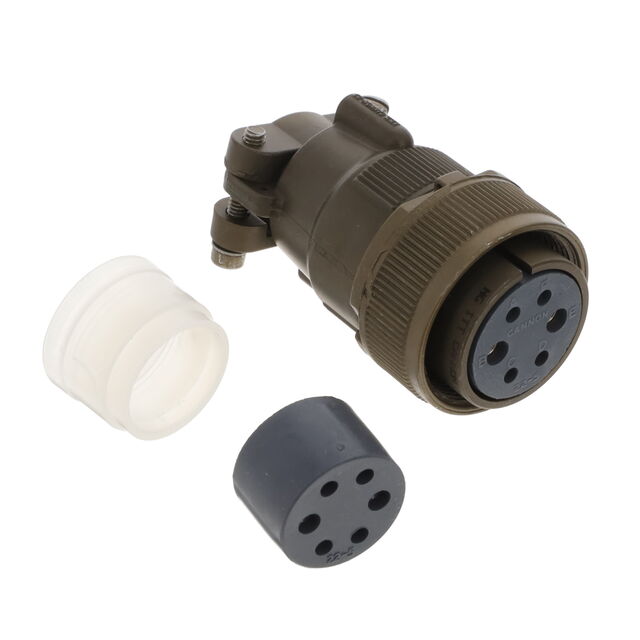

MS3106F22-5S

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Search across all available documentation for this part.

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F22-5S

Applications	Military, Marine
Cable Opening [diameter]	0.74 in
Cable Opening [diameter]	18.8 mm
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	22-5
Shielding	Unshielded

Part	Voltage Rating	Primary Material	Connector Type	Color	Qualification	Shell Material	Shell Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Orientation	Features	Grade	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Number of Positions	Current Rating (Amps)	Shell Size - Insert	Applications	Contact Material	Insert Material	Shielding	Cable Opening [diameter]	Cable Opening [diameter]
ITT Cannon, LLC MS3106F22-27P	500 VAC 700 VDC	Metal	Male Pins Plug	Olive Drab	MIL-DTL-5015	Aluminum Alloy	Olive Drab Cadmium	Free Hanging (In-Line)	-55 °C	125 °C	Silver	N	Cable Clamp Coupling Nut	Military	22	27	Environment Resistant	9	22 A 74 A
ITT Cannon, LLC MS3106F22-5S		Metal	Female Sockets Plug	Olive Drab	MIL-DTL-5015	Aluminum Alloy	Olive Drab Chromate over Cadmium	Free Hanging (In-Line)	-55 °C	125 °C	Silver	N	Backshell Cable Clamp Coupling Nut	Military			Environment Resistant	6		22-5	Marine Military	Copper Alloy	Neoprene	Unshielded	0.74 in	18.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
