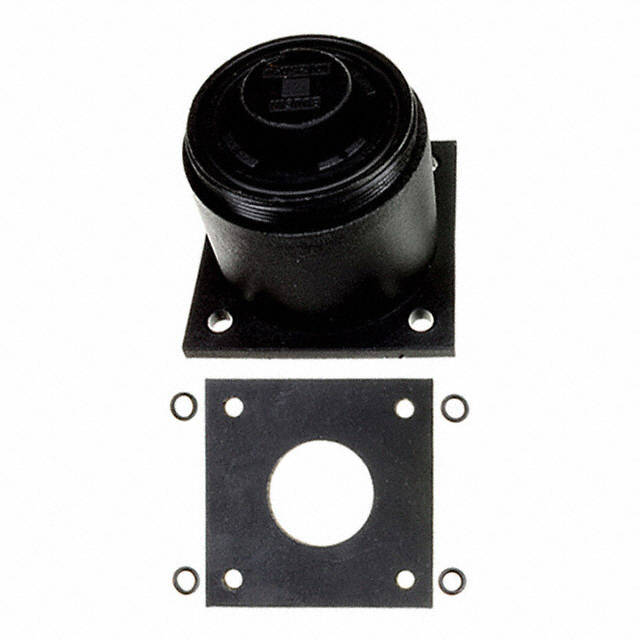

Specification	PX0757/S

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating	12 A
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 HB
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	2
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC
Voltage Rating (Type)	DC

PX0757 Series

Part	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Voltage Rating (Type)	Shell Material	Number of Positions	Position Types	Mounting Type	Connector Type	Orientation	Material Flammability Rating	Shielding	Color	Insert Material	Contact Material	Primary Material	Mounting Feature	Contact Finish - Mating	Termination	Ingress Protection Description	Ingress Protection IP Rating	Current Rating
BULGIN LIMITED PX0757/S	Threaded	70 °C	-20 °C	277 VAC	DC	Glass Filled Nylon Polyamide (PA)	2	Power	Panel Mount	Female Sockets Receptacle	Keyed	UL94 HB	Unshielded	Black	Nylon PA Polyamide	Brass	Plastic	Flange	Nickel	Screw	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 A
BULGIN LIMITED PX0757/P	Threaded	70 °C	-20 °C	277 VAC	DC	Glass Filled Nylon Polyamide (PA)	2	Power	Panel Mount	Male Pins Receptacle	Keyed	UL94 HB	Unshielded	Black	Nylon PA Polyamide	Brass	Plastic	Flange	Nickel	Screw	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 A
