XPEBRD-L1-R250-00902

Active

Cree LED

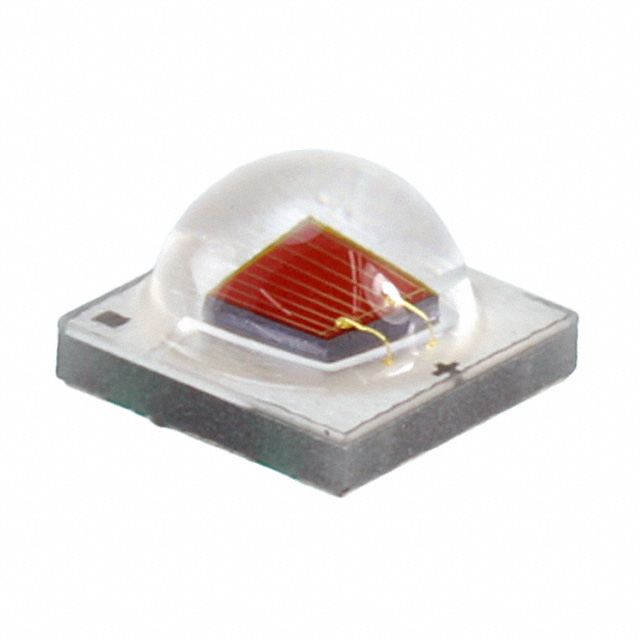

LED XLAMP XPE2 RED 623NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPEBRD-L1-R250-00902

Active

Cree LED

LED XLAMP XPE2 RED 623NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.90
		500	$ 1.78
		1250	$ 1.64

Description

General part information

XPEBRD Series

LED Lighting Color XLamp® XP-E2 Red 623nm (620nm ~ 625nm) 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPEBRD-L1-R250-00902	XPEBRD Series

Color	Red	Red
Current - Max [Max]	1 A	1 - 1.5 A
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Lumens/Watt @ Current - Test	109 lm/W	77 - 109 lm/W
Luminous Flux @ Current/Temperature	-	59 - 77 lm
Luminous Flux @ Current/Temperature [Max]	87 lm	67 - 87 lm
Luminous Flux @ Current/Temperature [Min]	81 lm	62 - 81 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	SMD	SMD, 1414
Viewing Angle	130 °	130 °
Voltage - Forward (Vf) (Typ)	2.2 V	2.18 - 2.2 V
Wavelength	623 nm	623 nm
Wavelength	-	620 nm
Wavelength	-	630 nm

XPEBRD Series

LED XLAMP XPE2 RED 625NM SMD

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Viewing Angle	Wavelength [Min]	Wavelength [Max]	Package / Case	Package / Case	Mounting Type	Supplier Device Package	Lumens/Watt @ Current - Test	Wavelength
Cree LED XPEBRD-L1-R250-00701	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA	74 lm	67 lm	71 lm	2.39 mm	0.094 "	Red	130 °	620 nm	630 nm	3535 Metric	1414	Surface Mount	SMD	92 lm/W
Cree LED XPEBRD-L1-0000-00A02	2.18 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.5 A	350 mA				2.39 mm	0.094 "	Red	130 °			3535 Metric	1414	Surface Mount	1414
Cree LED XPEBRD-L1-0000-00B01	2.18 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.5 A	350 mA				2.39 mm	0.094 "	Red	130 °			3535 Metric	1414	Surface Mount	1414
Cree LED XPEBRD-L1-0000-00901	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA	87 lm	81 lm		2.39 mm	0.094 "	Red	130 °	620 nm	630 nm	3535 Metric	1414	Surface Mount	SMD	109 lm/W
Cree LED XPEBRD-L1-0000-00501	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA			59 lm	2.39 mm	0.094 "	Red	130 °	620 nm	630 nm	3535 Metric	1414	Surface Mount	SMD	77 lm/W
Cree LED XPEBRD-L1-R250-00801	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA	81 lm	74 lm	77 lm	2.39 mm	0.094 "	Red	130 °	620 nm	630 nm	3535 Metric	1414	Surface Mount	SMD	100 lm/W
Cree LED XPEBRD-L1-0000-00802	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA	81 lm	74 lm	77 lm	2.39 mm	0.094 "	Red	130 °			3535 Metric	1414	Surface Mount	SMD	100 lm/W	623 nm
Cree LED XPEBRD-L1-0000-00A01	2.18 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.5 A	350 mA				2.39 mm	0.094 "	Red	130 °			3535 Metric	1414	Surface Mount	1414
Cree LED XPEBRD-L1-0000-00702	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA	74 lm	67 lm	71 lm	2.39 mm	0.094 "	Red	130 °			3535 Metric	1414	Surface Mount	SMD	92 lm/W	623 nm
Cree LED XPEBRD-L1-R250-00902	2.2 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1 A	350 mA	87 lm	81 lm		2.39 mm	0.094 "	Red	130 °			3535 Metric	1414	Surface Mount	SMD	109 lm/W	623 nm
