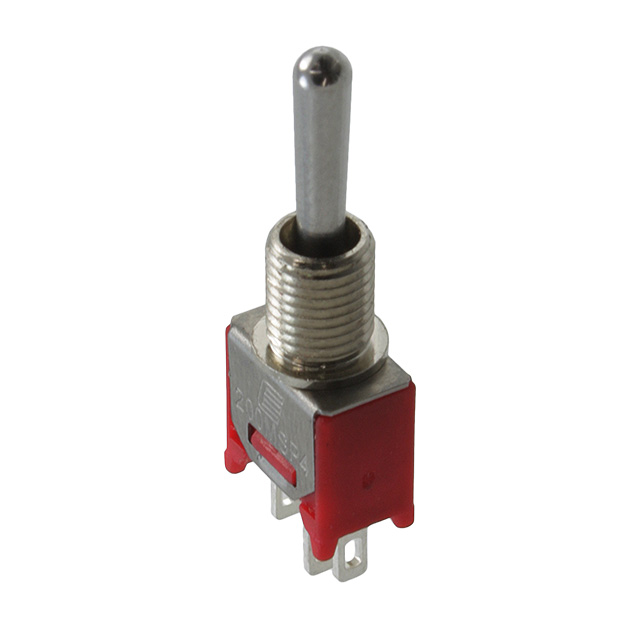

200MSP4T1B1M1QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200MSP4T1B1M1QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MSP4T1B1M1QE	200MSP4 Series

Actuator Length [x]	9.4 mm	0.5 - 10.41 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	10-48	Unthreaded, 10-48, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm	0.25 - 4.95 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Solder Lug	PC Pin, Solder Lug
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

200MSP4 Series

SWITCH TOGGLE SPDT 3A 120V

Part	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Illumination	Electrical Life	Actuator Length [x]	Mounting Type	Voltage Rating - AC	Features	Termination Style	Circuit	Actuator Material	Bushing Thread	Panel Cutout Dimensions [diameter]
E-Switch 200MSP4T2B2VS2QE	3 A	28 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	5.33 mm	Through Hole	120 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	Unthreaded
E-Switch 200MSP4T1B1M1QE	3 A	28 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	9.4 mm		120 V	Epoxy Sealed Terminals	Solder Lug	SPDT	Brass, Chrome Plated	10-48	4.95 mm
E-Switch 200MSP4T5B4M2RE	0.4 VA	20 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	7.88 mm	Through Hole	20 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	Unthreaded
E-Switch 200MSP4T1B4M7QE	3 A	28 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	9.4 mm	Right Angle, Through Hole, Vertical	120 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	Unthreaded
E-Switch 200MSP4T1B1M2QE	3 A	28 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	9.4 mm		120 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	10-48	4.95 mm
E-Switch 200MSP4T1B1M2RE	0.4 VA	20 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	9.4 mm		20 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	10-48	4.95 mm
E-Switch 200MSP4T2B4M2RE	0.4 VA	20 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	5.33 mm	Through Hole	20 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	Unthreaded
E-Switch 200MSP4T1B2M6RE	0.4 VA	20 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	9.4 mm	Through Hole, Right Angle	20 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	Unthreaded
E-Switch 200MSP4T4B5M1QEH	3 A	28 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	10.41 mm		120 V	Epoxy Sealed Terminals	Solder Lug	SPDT	Brass, Chrome Plated	1/4-40	0.25 in
E-Switch 200MSP4T2B3M2QE	3 A	28 V	Standard Round	-30 ░C	85 °C	Mom-Off-Mom	Non-Illuminated	30000 Cycles	5.33 mm		120 V	Epoxy Sealed Terminals	PC Pin	SPDT	Brass, Chrome Plated	10-48	4.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.86
		10	$ 3.45
		25	$ 3.27
		50	$ 3.15
		189	$ 2.99
		378	$ 2.85
		567	$ 2.62
		1134	$ 2.51

Description

General part information

200MSP4 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available
