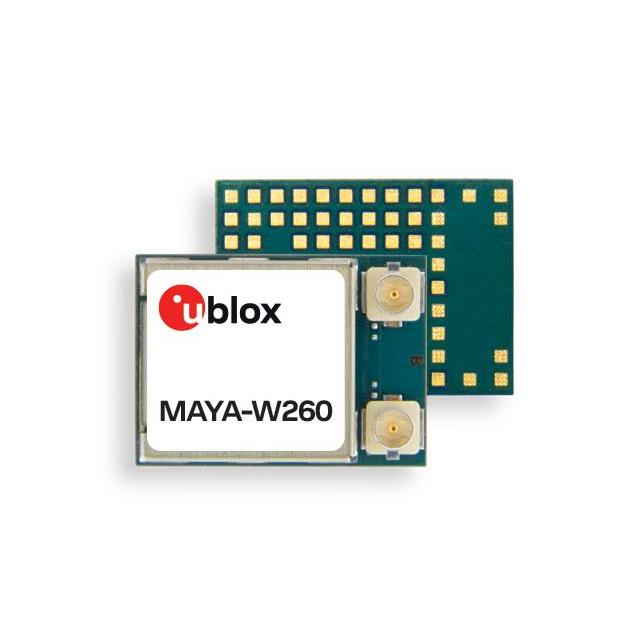

MAYA-W260-00B
Activeu-blox
RF TXRX MOD BT IU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAYA-W260-00B
Activeu-blox
RF TXRX MOD BT IU.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAYA-W260-00B |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 600 Mbps |
| Frequency [Max] | 5 GHz |
| Frequency [Min] | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 86-BFLGA Module |
| Power - Output | 20 dBm |
| Protocol | 802.11n, 802.11ac, 802.11ax, 802.11a, 802.11g, 802.11b |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Sensitivity | -98 dBm |
| Utilized IC / Part | NXP IW1611 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.77 | |
| 10 | $ 19.59 | |||
| 50 | $ 17.63 | |||
| 100 | $ 16.89 | |||
| Digi-Reel® | 1 | $ 21.77 | ||
| 10 | $ 19.59 | |||
| 50 | $ 17.63 | |||
| 100 | $ 16.89 | |||
| Tape & Reel (TR) | 500 | $ 15.88 | ||
Description
General part information
MAYA-W260 Series
802.15.4, Bluetooth, WiFi 802.11a/b/g/n/ac/ax Transceiver Module 2.4GHz ~ 5GHz Antenna Not Included, U.FL Surface Mount
