4936-3-5

Unknown

3M (TC)

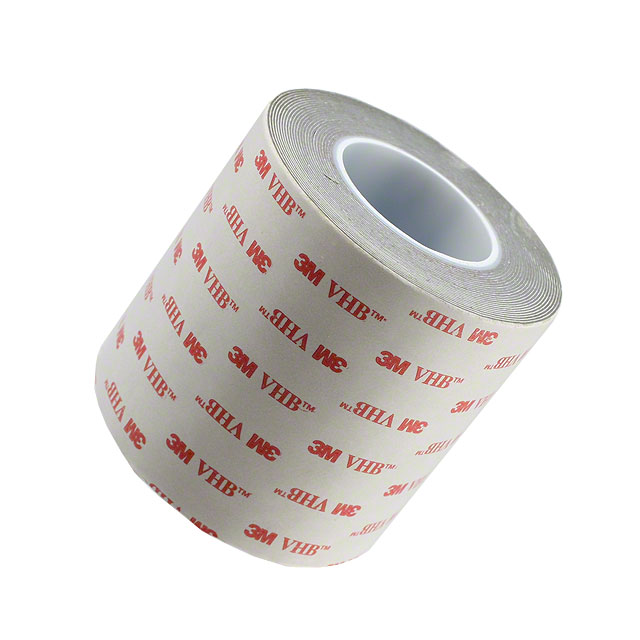

TAPE DBL SIDED GRAY 3"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4936-3-5

Unknown

3M (TC)

TAPE DBL SIDED GRAY 3"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4936-3-5

Adhesive	Acrylic
Backing, Carrier	Acrylic Foam
Color	Gray
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	0.635 mm
Thickness	0.635 mm
Thickness	0.025 in
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose
Width [x]	76.2 mm
Width [x]	3 in

4936 Series

Part	Width	Width [diameter]	Width	Tape Type	Adhesive	Thickness	Thickness	Thickness	Shelf Life	Shelf Life Start	Temperature Range	Temperature Range	Backing, Carrier	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Usage	Width	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Width [diameter]	Width
3M (TC) 4936CIR-0.5(250)	12.7 mm	0.5 in	0.5 in	Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose
3M (TC) 4936-0.75-0.75(5)	0.75 in	0.75 in		Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose	19.05 mm
3M (TC) 4936-0.5-5	12.7 mm		0.5 in	Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose	0.5 in	4.6 m	15 ft	5 yd	0.003 in	3 mils	0.076 mm
3M (TC) 5/16-36-4936	7.87 mm		0.31 in	Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	199 °F	93 °C	Acrylic Foam	Gray	4 °C 39 °F	38 °C 100 °F		0.3125 in	32.9 m	108 ft	36 yd	0.003 in	3 mils	0.076 mm
3M (TC) 4936CIR-0.75(250)	0.75 in	0.75 in		Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose	19.05 mm
3M (TC) 4936-0.25-5	6.35 mm		0.25 in	Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F		0.25 in	4.6 m	15 ft	5 yd	0.003 in	3 mils	0.076 mm
3M (TC) 4936SQ-0.5(250)	12.7 mm		0.5 in	Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose	0.5 in	12.7 mm	0.5 in	0.5 in
3M (TC) 4936-3-5				Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose		4.6 m	15 ft	5 yd	0.003 in	3 mils	0.076 mm	76.2 mm	3 in
3M (TC) 4936-1-1(5)		1 in		Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose										25.4 mm
3M (TC) 4936SQ-1.5(5)	38.1 mm		1.5 "	Double Coated Double Sided	Acrylic	0.635 mm	0.635 mm	0.025 in	24 Months	Date of Shipment	200 °F	93 °C	Acrylic Foam	Gray	4 °C 40 °F	38 °C 100 °F	General Purpose		38.1 mm	1.5 "								1 1/2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4936 Series

Double Coated, Double Sided Tape Acrylic Adhesive Gray 3.00" (76.20mm) X 15' (4.6m) 5 yds
