TFA9896UK/N1Z

Active

NXP USA Inc.

IC AMP CLASS D MONO 2.1W 30WLCSP

Search across all available documentation for this part.

Active

NXP USA Inc.

IC AMP CLASS D MONO 2.1W 30WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9896UK/N1Z

Features	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load	2.1 W
Max Output Power x Channels @ Load [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)

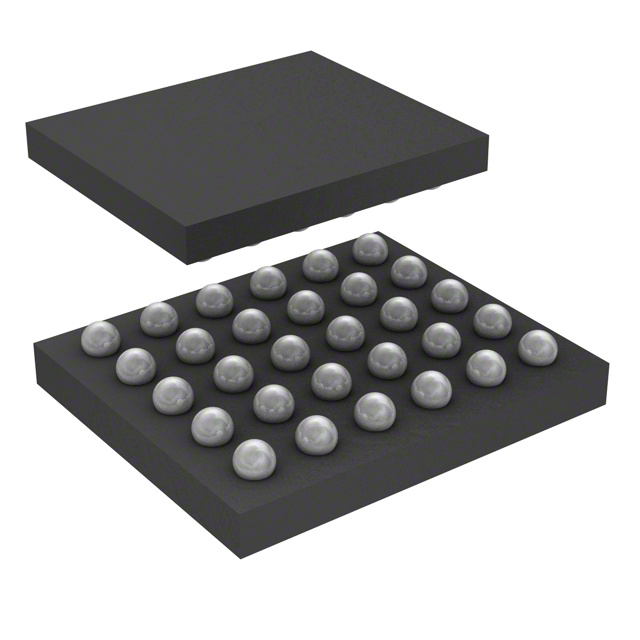

Package / Case	30-UFBGA, WLCSP
Supplier Device Package	30-WLCSP
Supplier Device Package [x]	2.72
Supplier Device Package [y]	2.06
Type	Class D

IC AMP CLASS D MONO 2.1W 30WLCSP

Part	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Features	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Package / Case	Output Type
NXP USA Inc. TFA9896UK/N1Z	2.06	2.72	30-WLCSP	85 °C	-40 °C	Class D	Surface Mount	Depop, Short-Circuit, Thermal Protection	2.1 W	1	30-UFBGA, WLCSP	1-Channel (Mono)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 30-WLCSP (2.72x2.06)
