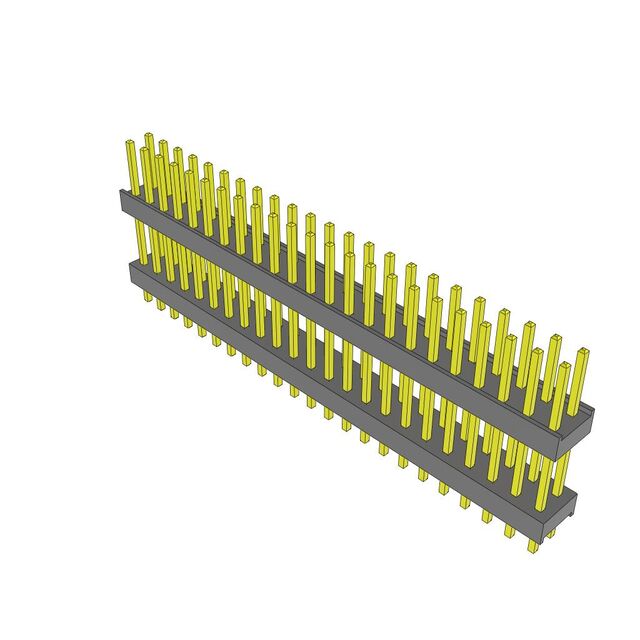

DW-23-10-T-D-480

Active

Samtec Inc.

CONN HDR 46POS 0.1 STACK T/H TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 46POS 0.1 STACK T/H TIN

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Termination	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Number of Rows	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. DW-23-10-T-D-480	2.54 mm	0.1 in	6.096 mm	0.24 in	46	0.48 in	12.192 mm	Tin	Solder	0.1 in	2.54 mm	0.11 in	2.794 mm	2	Through Hole	0.83 in	21.082 mm	Black
Samtec Inc. DW-23-10-S-D-470	2.54 mm	0.1 in	6.35 mm	0.25 in	46	0.47 in	11.938 mm	Gold	Solder	0.1 in	2.54 mm	0.11 in	2.794 mm	2	Through Hole	0.83 in	21.082 mm	Black	30 µin	0.76 µm
Samtec Inc. DW-23-10-L-D-500	2.54 mm	0.1 in	5.588 mm	0.22 in	46	0.5 in	12.7 mm	Gold	Solder	0.1 in	2.54 mm	0.11 in	2.794 mm	2	Through Hole	0.83 in	21.082 mm	Black	10 Áin	0.25 Ám
Samtec Inc. DW-23-10-L-D-490	2.54 mm	0.1 in	5.842 mm	0.23 in	46	0.49 in	12.446 mm	Gold	Solder	0.1 in	2.54 mm	0.11 in	2.794 mm	2	Through Hole	0.83 in	21.082 mm	Black	10 Áin	0.25 Ám
Samtec Inc. DW-23-10-T-T-565	2.54 mm	0.1 in	3.937 mm	0.155 in	69	0.565 in	14.351 mm	Tin	Solder	0.1 in	2.54 mm	0.11 in	2.794 mm	3	Through Hole	0.83 in	21.082 mm	Black
Samtec Inc. DW-23-10-T-S-455	2.54 mm	0.1 in	6.731 mm	0.265 in	23	0.455 in	11.557 mm	Tin	Solder			0.11 in	2.794 mm	1	Through Hole	0.83 in	21.082 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.42

General part information

46 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
