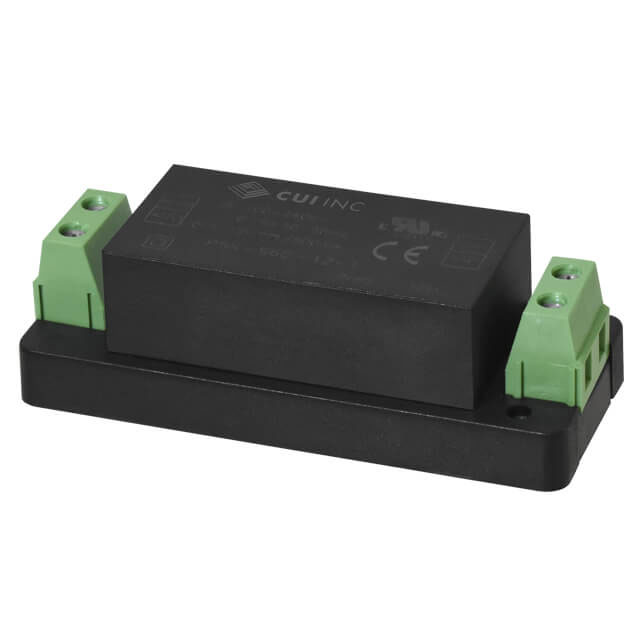

PSK-S6C-12-T

Obsolete

CUI Inc.

DC-DC POWER MODULES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSK-S6C-12-T

Obsolete

CUI Inc.

DC-DC POWER MODULES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S6C-12-T

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output 1	500 mA
Efficiency	77 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	6 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	24.2 mm
Size / Dimension [z]	24.13 mm
Standard Number	55024, 62368-1, 55032 Class A, 60950-1, 61000-3-2
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

PSK-S6C Series

Part	Type	Applications	Line Regulation	Package / Case	Voltage - Output 1	Features	Standard Number	Efficiency	Mounting Type	Approval Agency	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Load Regulation	Current - Output 1	Voltage - Isolation	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Input Type	DC Voltage - Input (Max) [Max]
CUI Inc. PSK-S6C-3	Enclosed	ITE (Commercial)	0.5 %	4-DIP Module	3.3 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	70 %	Through Hole	CB Scheme EN IEC UL	1	264 VAC 370 VDC	85 VAC 100 V	4.1 W	0.6 "	50.8 mm	2 in	25.4 mm	25.4 mm	15.4 mm	1.25 A	1 %
CUI Inc. PSK-S6C-24-T	Enclosed	ITE (Commercial)			24 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	80 %	Chassis Mount	CB Scheme EN IEC UL	1	264 VAC 370 VDC	85 VAC 100 V	6 W	24.13 mm	76 mm	2.99 in	31.5 mm	1.24 in	24.2 mm			250 mA	4000 V
CUI Inc. PSK-S6C-5-DIN		ITE (Commercial)			5 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	76 %		CB Scheme EN IEC UL	1			6 W	1.13 in	76 mm	2.99 in		1.24 in		1.2 A			4000 V	100 V	85 VAC	264 VAC	31.5 mm	28.8 mm	AC or DC	370 V
CUI Inc. PSK-S6C-12-T	Enclosed	ITE (Commercial)			12 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	77 %	Chassis Mount	CB Scheme EN IEC UL	1	264 VAC 370 VDC	85 VAC 100 V	6 W	24.13 mm	76 mm	2.99 in	31.5 mm	1.24 in	24.2 mm			500 mA	4000 V
CUI Inc. PSK-S6C-9-DIN		ITE (Commercial)			9 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	74 %		CB Scheme EN IEC UL	1			6 W	1.13 in	76 mm	2.99 in		1.24 in		660 mA			4000 V	100 V	85 VAC	264 VAC	31.5 mm	28.8 mm	AC or DC	370 V
CUI Inc. PSK-S6C-24-DIN		ITE (Commercial)			24 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	80 %		CB Scheme EN IEC UL	1			6 W	1.13 in	76 mm	2.99 in		1.24 in		250 mA			4000 V	100 V	85 VAC	264 VAC	31.5 mm	28.8 mm	AC or DC	370 V
CUI Inc. PSK-S6C-24	Enclosed	ITE (Commercial)	0.5 %	4-DIP Module	24 V	Universal Input	55024 55032 Class A 60950-1 61000-3-2 62368-1	80 %	Through Hole	CB Scheme EN IEC UL	1	264 VAC 370 VDC	85 VAC 100 V	6 W	0.6 "	50.8 mm	2 in	25.4 mm	25.4 mm	15.4 mm	250 mA	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 45.76
		192	$ 18.26
		504	$ 17.65
		1008	$ 17.35

Description

General part information

PSK-S6C Series

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 100 ~ 370 VDC Input
