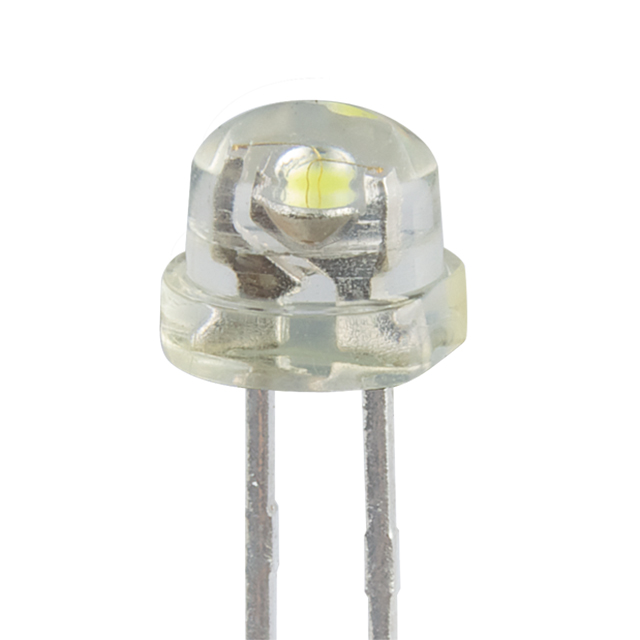

WP9294QBC/D

Active

Kingbright

LED BLUE CLEAR 5MM ROUND T/H

Search across all available documentation for this part.

Active

Kingbright

LED BLUE CLEAR 5MM ROUND T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 465nm LED Indication - Discrete 3.3V Radial

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED BLUE CLEAR 5MM ROUND T/H

Part	Mounting Type	Lens Size [diameter]	Size / Dimension [diameter]	Viewing Angle	Package / Case	Configuration	Lens Style	Lens Color	Color	Millicandela Rating	Wavelength - Peak	Height (Max) [Max] [z]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test	Supplier Device Package [diameter]	Wavelength - Dominant	Height (Max) [Max]	Wavelength - Peak [custom]	Supplier Device Package	Supplier Device Package
Kingbright WP9294QBC/G	Through Hole	4.8 mm Dia	4.8 mm	60 °	Radial	Standard	Round with Domed Top	Colorless	Blue	700 mcd	461 nm	4.85 mm	Clear	3.3 V	20 mA	5 mm	465 nm
Kingbright WP9294SECK/J3	Through Hole	4.8 mm Dia	4.8 mm	130 °	Radial	Standard	Round with Domed Top	Colorless	Red	900 mcd			Clear	2.2 V	20 mA	5 mm	625 nm	5.05 mm	640 nm
Kingbright WP9294SEC/J3	Through Hole	4.8 mm Dia	4.8 mm	130 °	Radial	Standard	Round with Domed Top	Colorless	Red	700 mcd		4.85 mm	Clear	2.2 V	20 mA	5 mm	625 nm		640 nm
Kingbright WP9294SYC/J3	Through Hole	4.8 mm Dia	4.8 mm	130 °	Radial	Standard	Round with Domed Top	Colorless	Yellow	700 mcd	590 nm	4.85 mm	Clear	2 V	20 mA	5 mm	590 nm
Kingbright WP9294QBC/D	Through Hole	4.8 mm Dia	4.8 mm	70 °	Radial	Standard	Round with Domed Top	Colorless	Blue	500 mcd	460 nm		Clear	3.3 V	20 mA		465 nm	5.05 mm		Round	5 mm
