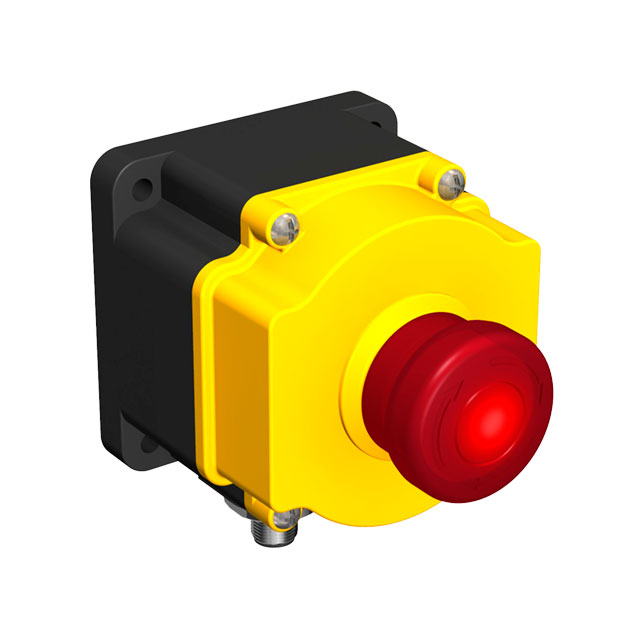

SSA-EB1PL2-12ED1Q8

Active

BANNER ENGINEERING

EMERGENCY STOP SWITCH, SPST-NO, DPST-NC, TWIST, PULL TO RELEASE, 8 PIN M12 CONNECTOR, 2 A, 60 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SSA-EB1PL2-12ED1Q8

Active

BANNER ENGINEERING

EMERGENCY STOP SWITCH, SPST-NO, DPST-NC, TWIST, PULL TO RELEASE, 8 PIN M12 CONNECTOR, 2 A, 60 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-EB1PL2-12ED1Q8

Circuit	3PST-2NC/1NO
Current Rating (Amps)	2 A
Features	Control Box Enclosure, Illuminated (Red)
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Chassis Mount
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Reset Operation	Pull or Twist
Switch Function	On-Off, Off-On
Termination Style	Connector
Voltage Rating - DC	24 V

SSA-EB1 Series

Part	Switch Function	Circuit	Mounting Type	Features	Current Rating (Amps)	Voltage Rating - DC	Ingress Protection	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Reset Operation	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)
BANNER ENGINEERING SSA-EB1P-02ECQ5B	On-Off	DPST-NC	Panel Mount Front	Control Box Enclosure	2 A	30 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Pull or Twist	30 mm
BANNER ENGINEERING SSA-EB1PLXR-02ED1Q5A	On-Off	DPST-NC	Chassis Mount	Control Box Enclosure Illuminated (Red)	2 A	24 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Pull or Twist		24 V
BANNER ENGINEERING SSA-EB1PL2-12ED1Q8	Off-On On-Off	3PST-2NC/1NO	Chassis Mount	Control Box Enclosure Illuminated (Red)	2 A	24 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Pull or Twist		24 VAC/DC
BANNER ENGINEERING SSA-EB1MP-02ED1Q4	On-Off	DPST-NC	Chassis Mount	Control Box Enclosure Padlock Style	2 A	24 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Twist
BANNER ENGINEERING SSA-EB1P-22	Off-On On-Off	4PST-2NO/2NC	Panel Mount Front		2 A	24 V	IP65 - Dust Tight Water Resistant	Screw Terminal	60 °C	-25 °C	Pull or Twist	30 mm
BANNER ENGINEERING SSA-EB1MP-22ED1Q8	Off-On On-Off	4PST-2NO/2NC	Chassis Mount	Control Box Enclosure Padlock Style	2 A	24 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Twist
BANNER ENGINEERING SSA-EB1ML1P-13	Off-On On-Off	4PST-3NC/1NO	Panel Mount Front	Illuminated (Red)	2 A	24 V	IP65 - Dust Tight Water Resistant	Screw Terminal	55 °C	-25 °C	Key Lock	30 mm	24 VAC/DC
BANNER ENGINEERING SSA-EB1P-22ECQ8	Off-On On-Off	4PST-2NO/2NC	Panel Mount Front	Control Box Enclosure	2 A	24 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Pull or Twist	30 mm
BANNER ENGINEERING SSA-EB1P-02ECQ5A	On-Off	DPST-NC	Panel Mount Front	Control Box Enclosure	2 A	30 V	IP65 - Dust Tight Water Resistant	Connector	55 °C	-25 °C	Pull or Twist	30 mm
BANNER ENGINEERING SSA-EB1PL1-02	On-Off	DPST-NC	Panel Mount Front	Illuminated (Red)	2 A	30 V	IP65 - Dust Tight Water Resistant	Screw Terminal	55 °C	-25 °C	Pull or Twist	30 mm	24 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 195.00
Newark	Each	1	$ 199.00

Description

General part information

SSA-EB1 Series

EMERGENCY STOP SWITCH, SPST-NO, DPST-NC, TWIST, PULL TO RELEASE, 8 PIN M12 CONNECTOR, 2 A, 60 V
