Specification	CTS4U-N

Color	Gray
Current - IEC	32 A
Current - UL	35 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length	8 mm
Terminal Width	6 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	1000 V
Voltage - UL	600 V
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	10 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²

CTS4 Series

Part	Material - Insulation	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Stripping Length	Number of Positions	Current - IEC	Termination Style	Voltage - IEC	Color	Type	Voltage - UL	Current - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Levels	Terminal Width
Altech Corporation CTS4U-N/W	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	White	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
Altech Corporation CTS4U-N/BL	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Black	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
Altech Corporation CTS4U-N	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Gray	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
Altech Corporation CTS4U-N/R	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Red	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
Altech Corporation CTS4U-N/R	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Red	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm

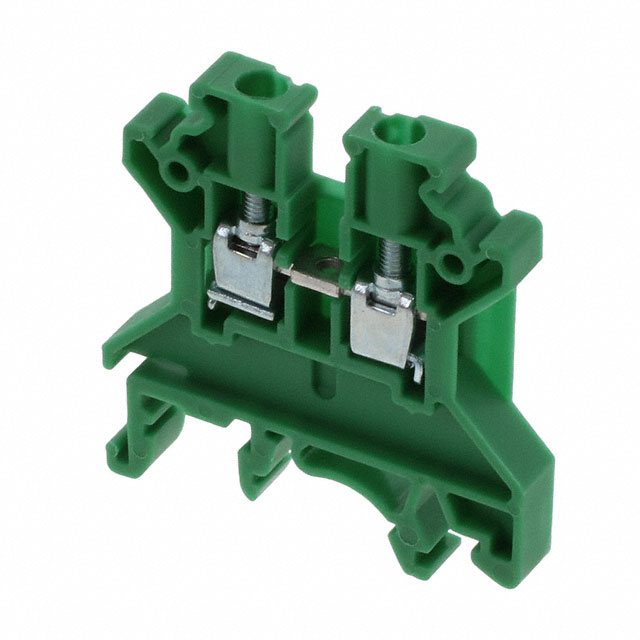

Altech Corporation CTS4U-N/G	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Green	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
Altech Corporation CTS4U-N	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Gray	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
Altech Corporation CTS4U-N/BL	Nylon 6/6 PA66 Polyamide	4 mm²	0.2 mm²	8 mm	2	32 A	Screw	1000 V	Black	Feed Through	600 V	35 A	22 AWG	10 AWG	1	6 mm
