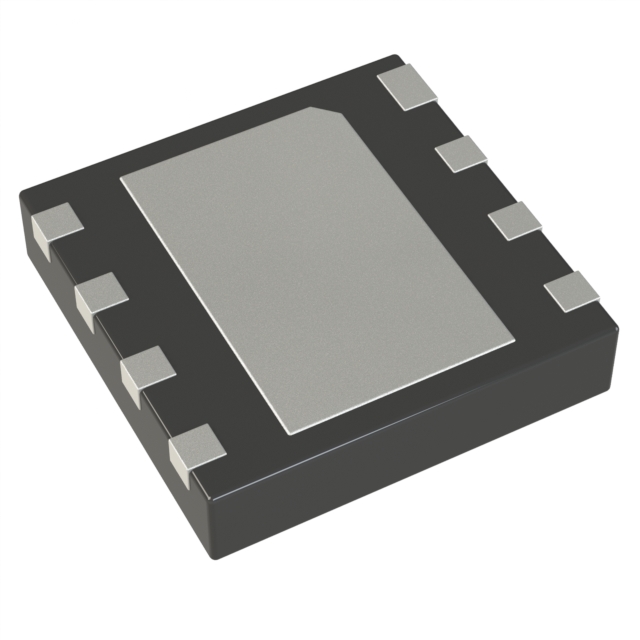

XC9802B433DR-G
ActiveTorex Semiconductor Ltd
IC REG BOOST 4.3V 80MA 8USP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC9802B433DR-G
ActiveTorex Semiconductor Ltd
IC REG BOOST 4.3V 80MA 8USP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC9802B433DR-G |
|---|---|
| Current - Output | 80 mA |
| Frequency - Switching | 300 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-UDFN Exposed Pad |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.8 V |
| Voltage - Output (Min/Fixed) | 4.3 V |
XC9802 Series
| Part | Synchronous Rectifier | Voltage - Input (Max) [Max] | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Function | Frequency - Switching | Package / Case | Package / Case [custom] | Package / Case | Voltage - Output (Min/Fixed) | Number of Outputs | Supplier Device Package | Mounting Type | Current - Output | Topology | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 3.2 V | 1 | 8-MSOP | Surface Mount | 80 mA | Boost | 1.8 V | |
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-XDFN Exposed Pad | 2.8 V | 1 | USP-8B05 | Surface Mount | 80 mA | Boost | 1.8 V | |||
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 5.6 V | 1 | 8-MSOP | Surface Mount | 80 mA | Boost | 1.8 V | |
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 4.1 V | 1 | 8-MSOP | Surface Mount | 80 mA | Boost | 1.8 V | |
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-XDFN Exposed Pad | 3.8 V | 1 | USP-8B05 | Surface Mount | 80 mA | Boost | 1.8 V | |||
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-XDFN Exposed Pad | 5.4 V | 1 | USP-8B05 | Surface Mount | 80 mA | Boost | 1.8 V | |||
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 3.7 V | 1 | 8-MSOP | Surface Mount | 80 mA | Boost | 1.8 V | |
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-UDFN Exposed Pad | 4.2 V | 1 | Surface Mount | 80 mA | Boost | 1.8 V | ||||
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-UDFN Exposed Pad | 4.3 V | 1 | Surface Mount | 80 mA | Boost | 1.8 V | ||||
Torex Semiconductor Ltd | 5.5 V | 1.81 mOhm | 85 °C | -40 °C | Positive | Step-Up | 300 kHz | 8-XDFN Exposed Pad | 4.7 V | 1 | USP-8B05 | Surface Mount | 80 mA | Boost | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.85 | |
| 6000 | $ 0.82 | |||
Description
General part information
XC9802 Series
Boost Switching Regulator IC Positive Fixed 4.3V 1 Output 80mA 8-UDFN Exposed Pad
Documents
Technical documentation and resources
