AXT330124

Active

Panasonic Electric Works

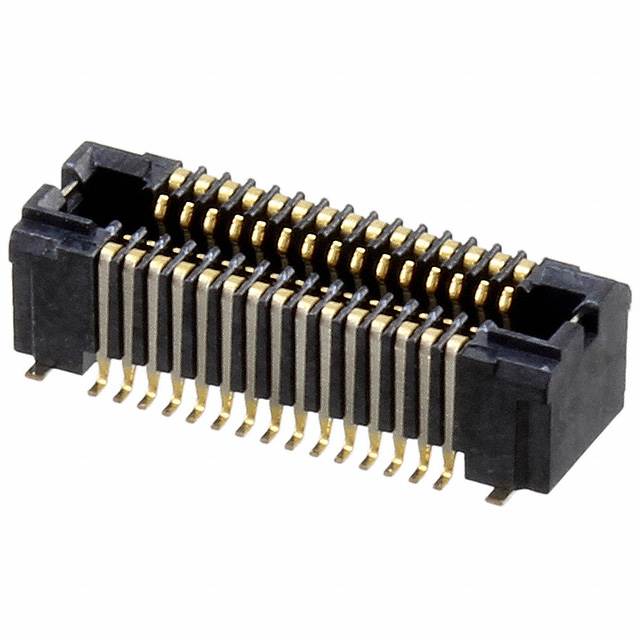

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT330124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm, 2 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Features	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Panasonic Electric Works AXT330114	1.5 mm	Gold	0.016 in	0.4 mm	30	Outer Shroud Contacts Socket	Board Guide Solder Retention	2	Surface Mount	0.057 in	1.45 mm
Panasonic Electric Works AXT330154	1.5 mm	Gold	0.016 in	0.4 mm	30	Outer Shroud Contacts Socket	Board Guide Solder Retention	2	Surface Mount	0.057 in	1.45 mm
Panasonic Electric Works AXT330264		Gold	0.016 in	0.4 mm	30	Outer Shroud Contacts Socket	Solder Retention	2	Surface Mount	0.096 in	2.45 mm	2.5 mm 3 mm
Panasonic Electric Works AXT330124	1.5 mm 2 mm	Gold	0.016 in	0.4 mm	30	Outer Shroud Contacts Socket	Solder Retention	2	Surface Mount	0.057 in	1.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
