ISL6612CRZR5238

Active

Intersil

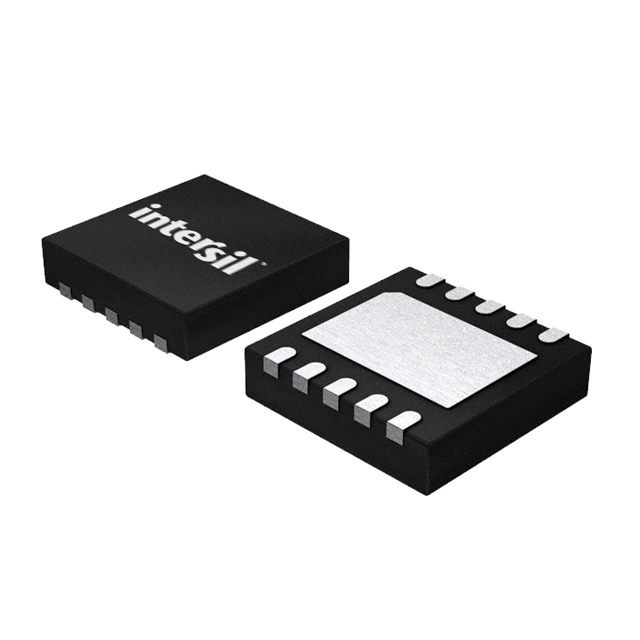

IC MOSFET DRVR SYNC BUCK 10-DFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ISL6612CRZR5238

Active

Intersil

IC MOSFET DRVR SYNC BUCK 10-DFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	247	$ 1.22

Description

General part information

ISL6612 Series

Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISL6612CRZR5238	ISL6612 Series

Channel Type	Synchronous	Synchronous
Current - Peak Output (Source, Sink) [custom]	1.25 A	1.25 A
Current - Peak Output (Source, Sink) [custom]	2 A	2 A
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	N-Channel MOSFET	MOSFET (N-Channel), N-Channel MOSFET
Input Type	Non-Inverting	Non-Inverting
Mounting Type	Surface Mount	Surface Mount
Number of Drivers	2	2
Operating Temperature [Max]	125 ¯C	85 - 125 ¯C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	10-VFDFN Exposed Pad	8-SOIC, 10-VFDFN Exposed Pad
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Package / Case	-	0.154 in
Package / Case	-	3.9 mm
Rise / Fall Time (Typ) [custom]	18 ns	18 ns
Rise / Fall Time (Typ) [custom]	26 ns	26 ns
Supplier Device Package	10-DFN (3x3)	8-SOIC, 8-SOIC-EP, 10-DFN (3x3)
Voltage - Supply [Max]	13.2 V	13.2 V
Voltage - Supply [Min]	10.8 VDC	10.8 VDC

ISL6612 Series

HALF BRIDGE BASED MOSFET DRIVER

Part	Gate Type	Supplier Device Package	Channel Type	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Input Type	Number of Drivers	Operating Temperature [Min]	Operating Temperature [Max]	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Package / Case
Intersil ISL6612CB-T	MOSFET (N-Channel)	8-SOIC	Synchronous	8-SOIC	3.9 mm	0.154 in	13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	0 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns
Intersil ISL6612AIB	N-Channel MOSFET	8-SOIC	Synchronous	8-SOIC	3.9 mm	0.154 in	13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	-40 °C	85 °C	Half-Bridge	1.25 A	2 A	18 ns	26 ns
Intersil ISL6612IBZ	N-Channel MOSFET	8-SOIC	Synchronous	8-SOIC	3.9 mm	0.154 in	13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	-40 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns
Intersil ISL6612ACB-T	N-Channel MOSFET	8-SOIC	Synchronous	8-SOIC	3.9 mm	0.154 in	13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	0 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns
Intersil ISL6612ECB	N-Channel MOSFET	8-SOIC-EP	Synchronous	8-SOIC			13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	0 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns	0.154 in	3.9 mm
Intersil ISL6612CB	N-Channel MOSFET	8-SOIC	Synchronous	8-SOIC	3.9 mm	0.154 in	13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	0 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns
Intersil ISL6612AECB	N-Channel MOSFET	8-SOIC-EP	Synchronous	8-SOIC			13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	0 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns	0.154 in	3.9 mm
Intersil ISL6612CRZR5238	N-Channel MOSFET	10-DFN (3x3)	Synchronous	10-VFDFN Exposed Pad			13.2 V	10.8 VDC	Surface Mount	Non-Inverting	2	0 °C	125 ¯C	Half-Bridge	1.25 A	2 A	18 ns	26 ns
