Connectors, Interconnects
796068-3
ActiveTE Connectivity Raychem Cable Protection

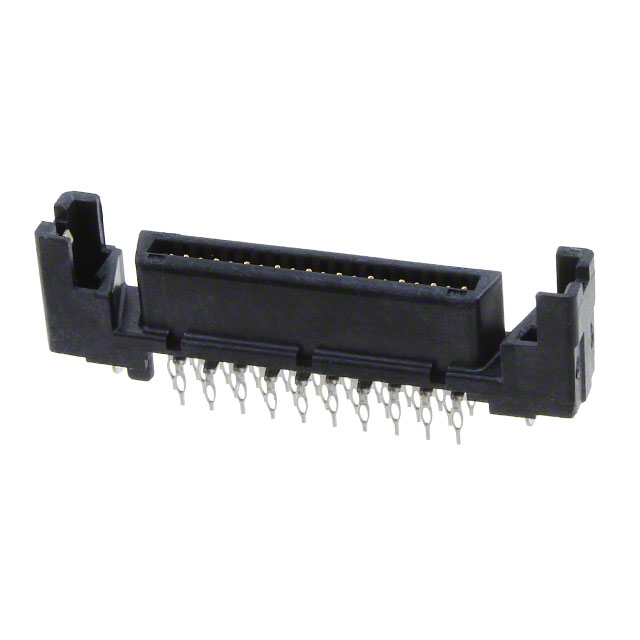

CONN SCA-2 RCP 40P VERT PRESSFIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 796068-3 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide, Board Lock |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Termination | Press-Fit |
| Type | SCA-2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 900 | $ 7.60 | |
Description
General part information
796068 Series
40 Position Receptacle Connector SCA-2 Through Hole Press-Fit
