Specification	2198318-8

Connector Pin Configuration (Columns)	1 pins
Connector Pin Configuration (Rows)	2 pins
Connector Style	Receptacle with Cage, Ganged
Connector Type	zSFP+
Contact Finish	Gold-Palladium, Gold
Features	EMI Shielded, Light Pipe, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions (Columns)	20
Number of Positions (Rows)	2
Number of Positions (Total)	40
Termination	Press-Fit

2198318 Series

Part	Connector Type	Contact Finish	Mounting Type	Features	Connector Pin Configuration (Rows)	Connector Style	Connector Pin Configuration (Columns)	Number of Positions (Total)	Number of Positions (Columns)	Number of Positions (Rows)	Termination
TE Connectivity AMP Connectors 2198318-8	zSFP+	Gold Gold-Palladium	Right Angle Through Hole	Board Guide EMI Shielded Light Pipe	2 pins	Ganged Receptacle with Cage	1 pins	40	20	2	Press-Fit

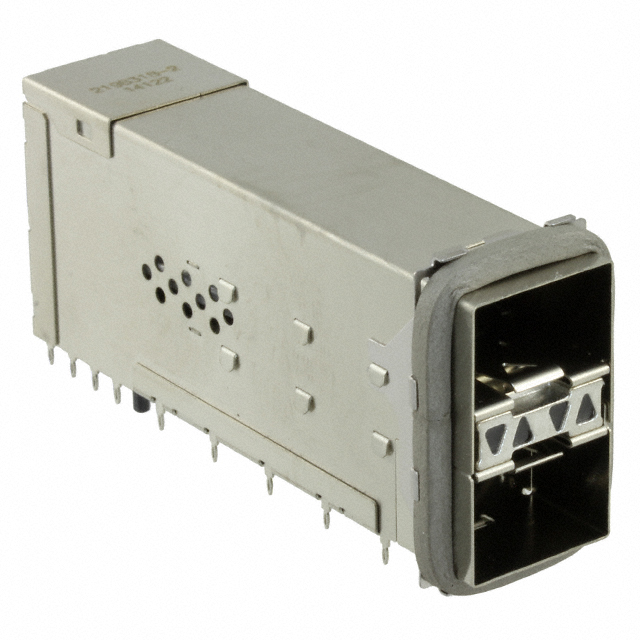

TE Connectivity AMP Connectors 2198318-2	zSFP+	Gold Gold-Palladium	Right Angle Through Hole	Board Guide EMI Shielded Light Pipe	2 pins	Ganged Receptacle with Cage	1 pins	40	20	2	Press-Fit

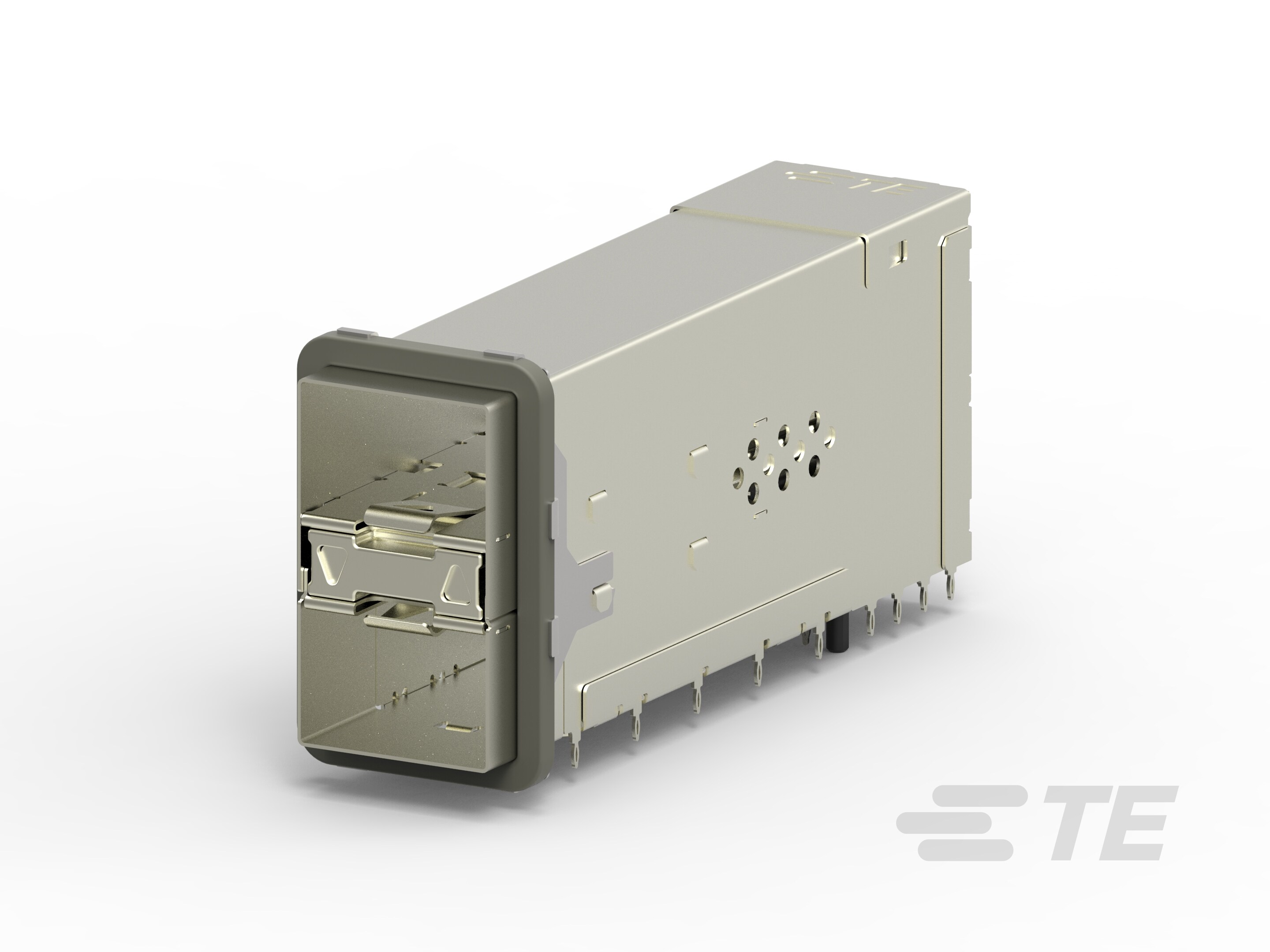

TE Connectivity AMP Connectors 2198318-4	zSFP+	Gold Gold-Palladium	Right Angle Through Hole	Board Guide EMI Shielded Light Pipe	2 pins	Ganged Receptacle with Cage	1 pins	40	20	2	Press-Fit
TE Connectivity AMP Connectors 2198318-3	zSFP+	Gold Gold-Palladium	Right Angle Through Hole	Board Guide EMI Shielded Light Pipe	2 pins	Ganged Receptacle with Cage	1 pins	40	20	2	Press-Fit
