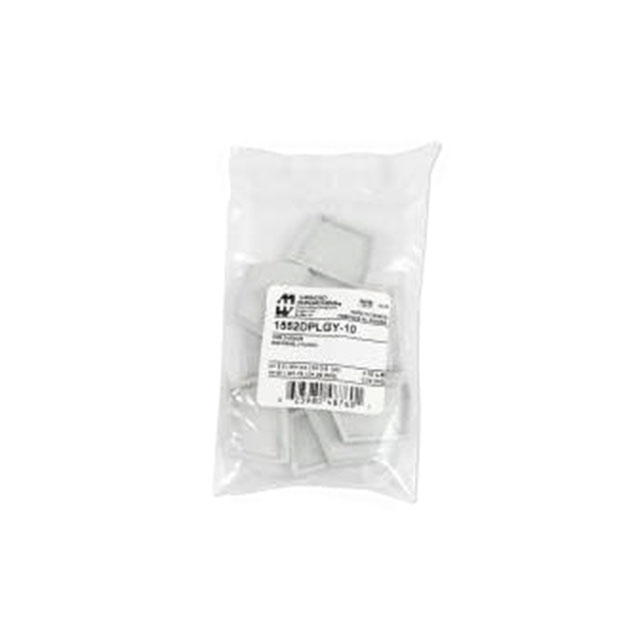

1552DPLGY-10

Active

Hammond Manufacturing

REPLACEMENT END PANELS, GRAY

Search across all available documentation for this part.

Active

Hammond Manufacturing

REPLACEMENT END PANELS, GRAY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ABS Panel, End 3.000" L x 2.000" W x 0.880" H (76.20mm x 50.80mm x 22.35mm) Gray

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1552DPLGY-10	1552 Series

Accessory Type	-	Cable Gland Kit, Wall Mount
Area (L x W)	-	35.1 - 75 cm²
Area (L x W)	-	5.44 - 11.7 in²
Color	Gray	Black, Gray
Container Type	-	Box
Design	-	Cover Included
For Use With/Related Products	1552D Series	1552C Series, 1552D Series
Height	-	0.87 - 1.18 "
Height	-	22.1 - 29.97 mm
Material	ABS	ABS
Material Flammability Rating	-	UL94 V-0
Ratings	-	IP54
Size / Dimension	-	50.04 - 50.8 mm
Size / Dimension	-	16 mm
Size / Dimension [x]	3 "	3 - 5.91 "
Size / Dimension [x]	76.2 mm	76.2 - 150.11 mm
Size / Dimension [y]	2 in	1.97 - 2 "
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	0.88 in	0.63 - 0.88 in
Size / Dimension [z]	22.35 mm	22.35 mm
Thickness	-	2.03 mm
Thickness	-	0.08 "
Type	Panel, End	Panel, End

1552C CABLE GLAND KIT GY

Part	For Use With/Related Products	Accessory Type	Height [z]	Height [z]	Color	Design	Ratings	Thickness	Thickness	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type
Hammond Manufacturing 1552CPGKITGY	1552C Series	Cable Gland Kit
Hammond Manufacturing 1552DHBK	1552D Series	Wall Mount
Hammond Manufacturing 1552C1BK			0.87 "	22.1 mm	Black	Cover Included	IP54	2.03 mm	0.08 "	Box	35.1 cm²	5.44 in²	UL94 V-0	ABS
Hammond Manufacturing 1552D5GY			1.18 in	29.97 mm	Gray	Cover Included	IP54	2.03 mm	0.08 "	Box	75 cm²	11.7 in²	UL94 V-0	ABS	5.91 "	50.04 mm	150.11 mm	1.97 "
Hammond Manufacturing 1552DPLGY-10	1552D Series				Gray									ABS	3 "		76.2 mm	2 in	50.8 mm	0.88 in	22.35 mm	Panel, End
Hammond Manufacturing 1552CHBK	1552C Series	Wall Mount
Hammond Manufacturing 1552DPGKITGY	1552D Series	Cable Gland Kit
Hammond Manufacturing 1552C5BK			0.87 "	22.1 mm	Black	Cover Included	IP54	2.03 mm	0.08 "	Box	75 cm²	11.7 in²	UL94 V-0	ABS	5.91 "	50.04 mm	150.11 mm	1.97 "
Hammond Manufacturing 1552C1GY			0.87 "	22.1 mm	Gray	Cover Included	IP54	2.03 mm	0.08 "	Box	35.1 cm²	5.44 in²	UL94 V-0	ABS
Hammond Manufacturing 1552D1BK			1.18 in	29.97 mm	Black	Cover Included	IP54	2.03 mm	0.08 "	Box	35.1 cm²	5.44 in²	UL94 V-0	ABS
