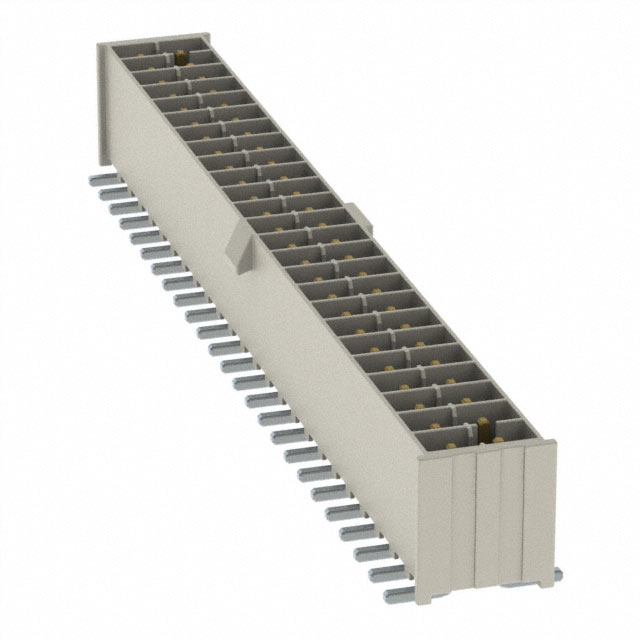

IPL1-125-02-L-D-K

Active

Samtec Inc.

CONN HEADER SMD 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPL1 Series Other Related Documents 01 IPL1 Datasheet +2

IPL1-125-02-L-D-K

Active

Samtec Inc.

CONN HEADER SMD 50POS 2.54MM

Deep-Dive with AI

DocumentsIPL1 Series Other Related Documents 01 IPL1 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-125-02-L-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-125 Series

Part	Shrouding	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Insulation Color	Insulation Material	Contact Material	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Termination	Mounting Type	Features	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. IPL1-125-01-F-D-RE1-K-WT	Shrouded - 4 Wall	50	0.1 in	2.54 mm	Header	2	Male Pin	3 µin	0.076 µm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2.54 mm	0.1 in	8.25 mm	0.325 in	2.16 mm	0.085 in	Solder	Through Hole Right Angle	Board Guide	All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square
Samtec Inc. IPL1-125-01-F-S-K	Shrouded - 4 Wall		0.1 in	2.54 mm	Header	1	Male Pin	3 µin	0.076 µm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold			8.13 mm	0.32 in			Solder	Through Hole		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square	0.12 in	3.05 mm
Samtec Inc. IPL1-125-01-L-S-RA-K	Shrouded - 4 Wall		0.1 in	2.54 mm	Header	1	Male Pin	10 çin	0.25 çm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold			6.1 mm	0.24 in	2.16 mm	0.085 in	Solder	Through Hole Right Angle		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square
Samtec Inc. IPL1-125-02-STL-D-K	Shrouded - 4 Wall	50	0.1 in	2.54 mm	Header	2	Male Pin	30 Áin	0.76 Ám	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2.54 mm	0.1 in	8.13 mm	0.32 in			Solder	Surface Mount		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square
Samtec Inc. IPL1-125-02-S-D-P	Shrouded - 4 Wall	50	0.1 in	2.54 mm	Header	2	Male Pin	30 Áin	0.76 Ám	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2.54 mm	0.1 in	8.13 mm	0.32 in			Solder	Surface Mount		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square
Samtec Inc. IPL1-125-02-L-D-K	Shrouded - 4 Wall	50	0.1 in	2.54 mm	Header	2	Male Pin	10 çin	0.25 çm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2.54 mm	0.1 in	8.13 mm	0.32 in			Solder	Surface Mount		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square
Samtec Inc. IPL1-125-02-H-D-K	Shrouded - 4 Wall	50	0.1 in	2.54 mm	Header	2	Male Pin	30 Áin	0.76 Ám	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2.54 mm	0.1 in	8.13 mm	0.32 in			Solder	Surface Mount		All	Gold	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square			3 µin	0.076 µm
Samtec Inc. IPL1-125-01-L-S-K	Shrouded - 4 Wall		0.1 in	2.54 mm	Header	1	Male Pin	10 çin	0.25 çm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold			8.13 mm	0.32 in			Solder	Through Hole		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square	0.12 in	3.05 mm
Samtec Inc. IPL1-125-01-L-D-RA-K	Shrouded - 4 Wall	50	0.1 in	2.54 mm	Header	2	Male Pin	10 çin	0.25 çm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	2.54 mm	0.1 in	7.37 mm	0.29 in	2.16 mm	0.085 in	Solder	Through Hole Right Angle		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square
Samtec Inc. IPL1-125-01-F-S-RA-K	Shrouded - 4 Wall		0.1 in	2.54 mm	Header	1	Male Pin	3 µin	0.076 µm	675 VAC 954 VDC	Natural	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold			6.1 mm	0.24 in	2.16 mm	0.085 in	Solder	Through Hole Right Angle		All	Tin	5.46 mm	0.215 in	Board to Cable/Wire	-55 °C	125 °C	Locking Ramp	UL94 V-0	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.79
		10	$ 6.94
		25	$ 6.40
		50	$ 5.63
		100	$ 5.00
