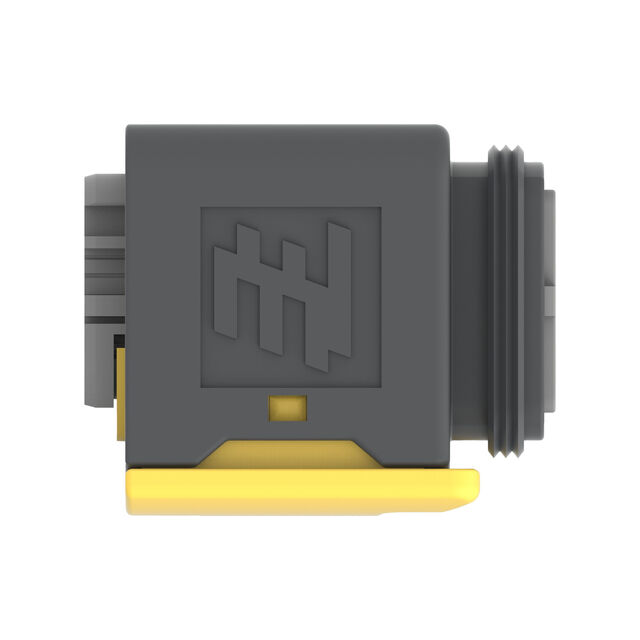

2-1418483-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 6.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 6.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1418483-1	1418483 Series

Color	Gray	Gray, Blue, Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Slide-On	Slide-On
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	140 °C	140 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.236 in	0.236 in
Pitch [x]	6 mm	6 mm

CONN RCPT HSG 2POS 6.00MM

Part	Number of Positions	Number of Rows	Color	Pitch [x]	Pitch [x]	Mounting Type	Fastening Type	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Type	Connector Type	Note	Features
TE Connectivity AMP Connectors 2-1418483-1	2	1	Gray	0.236 in	6 mm	Free Hanging (In-Line)	Slide-On	Crimp	140 °C	-40 °C	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Receptacle	Contacts Not Included	Sealed
TE Connectivity AMP Connectors 4-1418483-1	2	1	Blue	0.236 in	6 mm	Free Hanging (In-Line)	Slide-On	Crimp	140 °C	-40 °C	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Receptacle	Contacts Not Included	Sealed
TE Connectivity AMP Connectors 1-1418483-1	2	1	Black	0.236 in	6 mm	Free Hanging (In-Line)	Slide-On	Crimp	140 °C	-40 °C	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Receptacle	Contacts Not Included	Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Gray 0.236" (6.00mm)
