Specification	PIC12F510T-I/MS

A/D Channels	4 count
A/D Resolution (bits)	8 bit
Core Processor	PIC
Core Size (Bit Width)	8 Bit
Mounting Type	Surface Mount
Number of I/O	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.118 in

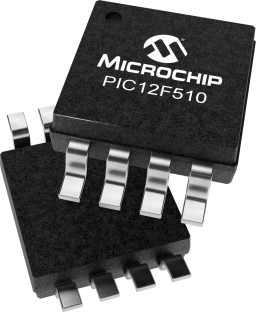

Package Name	8-MSOP, 8-TSSOP, 8-MSOP
Package Width	3 mm
Peripherals	POR, WDT
Program Memory Depth	1 K
Program Memory Size	1.5 KB
Program Memory Type	FLASH
Program Memory Width	12
RAM Size Depth	38
RAM Size Width	8 bit
Speed	8 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	2 V

PIC12F510 Series

Part	Core Size (Bit Width)	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Type	Package Name	Mounting Type	Number of I/O	Program Memory Size	Program Memory Width	Program Memory Depth	Speed	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	RAM Size Width	RAM Size Depth	Peripherals	Oscillator Type	Core Processor	A/D Channels	A/D Resolution (bits)	Package Length	Package Width	Package / Case
Microchip Technology PIC12F510-I/SN	8 Bit	85 °C	-40 °C	FLASH	8-SOIC	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.154 in	3.9 mm
Microchip Technology PIC12F510-E/P	8 Bit	125 °C	-40 °C	FLASH	8-DIP 8-PDIP	Through Hole	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.3 in	7.62 mm
Microchip Technology PIC12F510-E/SN	8 Bit	125 °C	-40 °C	FLASH	8-SOIC	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.154 in	3.9 mm
Microchip Technology PIC12F510-I/P	8 Bit	85 °C	-40 °C	FLASH	8-DIP 8-PDIP	Through Hole	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.3 in	7.62 mm
Microchip Technology PIC12F510-I/MC	8 Bit	85 °C	-40 °C	FLASH	8-DFN	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	2 mm	3 mm	8-VFDFN Exposed Pad
Microchip Technology PIC12F510T-I/MC	8 Bit	85 °C	-40 °C	FLASH	8-DFN	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	2 mm	3 mm	8-VFDFN Exposed Pad
Microchip Technology PIC12F510-E/MS	8 Bit	125 °C	-40 °C	FLASH	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.118 in	3 mm
Microchip Technology PIC12F510-I/MS	8 Bit	85 °C	-40 °C	FLASH	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.118 in	3 mm
Microchip Technology PIC12F510T-I/SN	8 Bit	85 °C	-40 °C	FLASH	8-SOIC	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.154 in	3.9 mm
Microchip Technology PIC12F510T-I/MS	8 Bit	85 °C	-40 °C	FLASH	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	5	1.5 KB	12	1 K	8 MHz	5.5 V	2 V	8 bit	38	POR WDT	Internal	PIC	4 count	8 bit	0.118 in	3 mm
