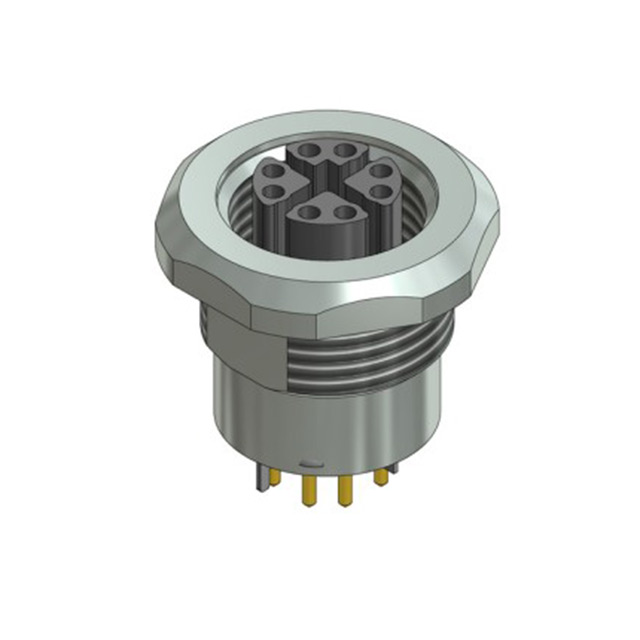

Specification	43-02760

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	0.5 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Liquid Crystal Polymer - Glass Fiber, LCP-GF
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	8
Operating Temperature (Max)	95 °C
Operating Temperature (Min)	-25 °C
Orientation	X
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	48 V

43-0276 Series

Part	Shell Finish	Voltage Rating	Mounting Feature	Number of Positions	Connector Type	Termination	Shell Size - Insert	Contact Finish - Mating	Primary Material	Shell Material	Orientation	Material Flammability Rating	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Mounting Type	Current Rating	Contact Material	Color	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 43-02760	Nickel	48 V	Bulkhead	8	Female Sockets Plug	Solder	M12-8	Gold	Metal	Copper Zinc	X	UL94 V-0	Threaded	Dust Tight Waterproof	IP67	Shielded	Panel Mount Through Hole	0.5 A	Copper Zinc	Silver	LCP-GF Liquid Crystal Polymer - Glass Fiber	-25 °C	95 °C
