IDP18E120XKSA1

Active

Infineon Technologies

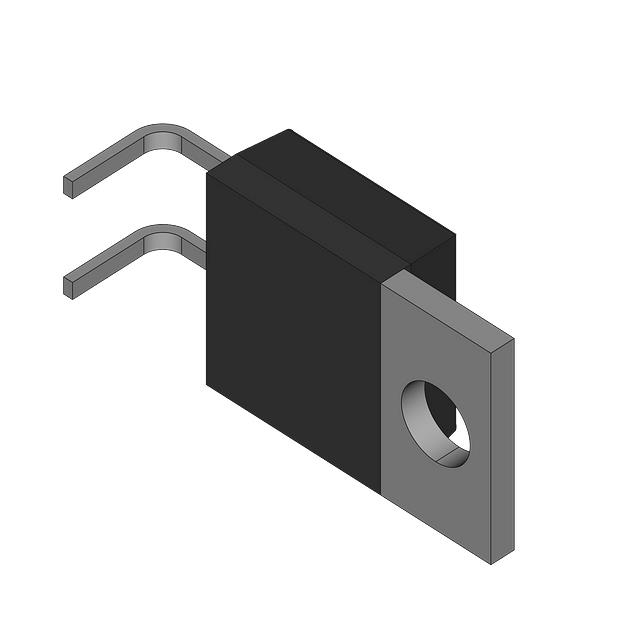

1200 V, 18 A SINGLE EMITTER CONTROLLED POWER SILICON DIODES IN A TO-220 REAL 2-PIN PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

IDP18E120XKSA1

Active

Infineon Technologies

1200 V, 18 A SINGLE EMITTER CONTROLLED POWER SILICON DIODES IN A TO-220 REAL 2-PIN PACKAGE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IDP18E120XKSA1

Current - Average Rectified (Io)	31 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	195 ns
Speed	200 mA, 500 ns
Supplier Device Package	PG-TO220-2-2
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	2.15 V

IDP18E120 Series

Part	Supplier Device Package	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Technology	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Speed
Infineon Technologies IDP18E120XKSA1	PG-TO220-2-2	31 A	TO-220-2	100 µA	1.2 kV	150 °C	-55 °C	195 ns	Standard	2.15 V	Through Hole	200 mA 500 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.07
		10	$ 0.90
		100	$ 0.88
		500	$ 0.85
Digikey	Tube	1	$ 1.67
		50	$ 1.34
		100	$ 1.10
		500	$ 1.00
Newark	Each	1	$ 2.64
		10	$ 2.17
		100	$ 1.40
		500	$ 1.26
		1000	$ 0.97
		2500	$ 0.96
		5000	$ 0.95

Description

General part information

IDP18E120 Series

The 1200 V, 18 A emitter controlledsilicon power diodein a TO-220 Real 2-leg package displays excellent softness and VF behaviour and is qualified with a Tj(max)of 150°C. The diodes are also available halogen-free according to IEC61249-2-21.
