826949-2

Active

TE Connectivity AMP Connectors

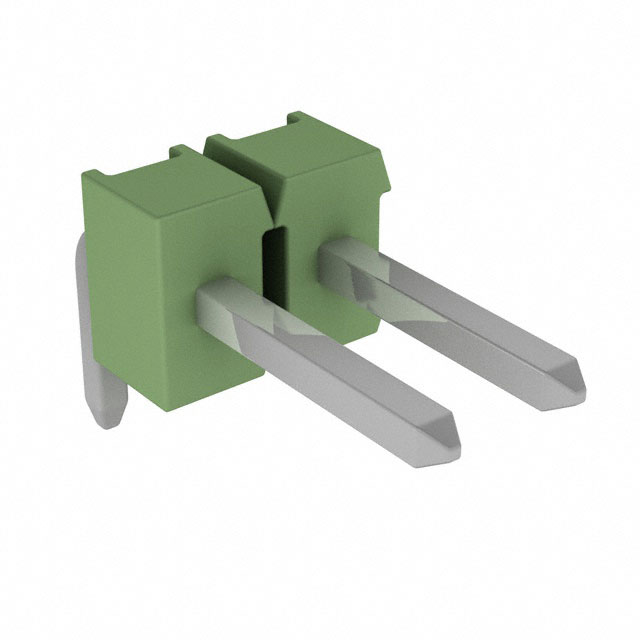

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

826949-2

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826949-2	826949 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	78.7 µin
Contact Finish Thickness - Mating	2 µm	2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	3.05 mm	3.05 mm
Insulation Height	0.12 in	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	2	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826949 Series

CONN HEADER R/A 2POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Post	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Post	Contact Length - Post [x]	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Shape	Shrouding	Fastening Type	Termination	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Color	Style	Mounting Type	Number of Rows	Insulation Material
TE Connectivity AMP Connectors 826949-2	-65 ░C	105 ░C	Breakaway, Header	Tin	5 A	All	2 çm	78.7 çin	Copper Alloy	78.7 µin	2 µm	2	3.2 mm	0.126 in	Male Pin	0.1 in	2.54 mm	3.05 mm	0.12 in	Square	Unshrouded	Push-Pull	Solder	UL94 V-0	0.228 in	5.8 mm	Green	Board to Board, Cable	Through Hole, Right Angle	1	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 3-826949-2	-65 ░C	105 ░C	Breakaway, Header	Tin	5 A	All	2 çm	78.7 çin	Copper Alloy	78.7 µin	2 µm		3.2 mm	0.126 in	Male Pin	0.1 in	2.54 mm	3.05 mm	0.12 in	Square	Unshrouded	Push-Pull	Solder	UL94 V-0	0.228 in	5.8 mm	Green	Board to Board, Cable	Through Hole, Right Angle	1	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826949-6	-65 ░C	105 ░C	Breakaway, Header	Tin	5 A	All	2 çm	78.7 çin	Copper Alloy	78.7 µin	2 µm	6	3.2 mm	0.126 in	Male Pin	0.1 in	2.54 mm	3.05 mm	0.12 in	Square	Unshrouded	Push-Pull	Solder	UL94 V-0	0.228 in	5.8 mm	Green	Board to Board, Cable	Through Hole, Right Angle	1	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826949-3	-65 ░C	105 ░C	Breakaway, Header	Tin	5 A	All	2 çm	78.7 çin	Copper Alloy	78.7 µin	2 µm		3.2 mm	0.126 in	Male Pin	0.1 in	2.54 mm	3.05 mm	0.12 in	Square	Unshrouded	Push-Pull	Solder	UL94 V-0	0.228 in	5.8 mm	Green	Board to Board, Cable	Through Hole, Right Angle	1	Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	36000	$ 0.11

Description

General part information

826949 Series

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
