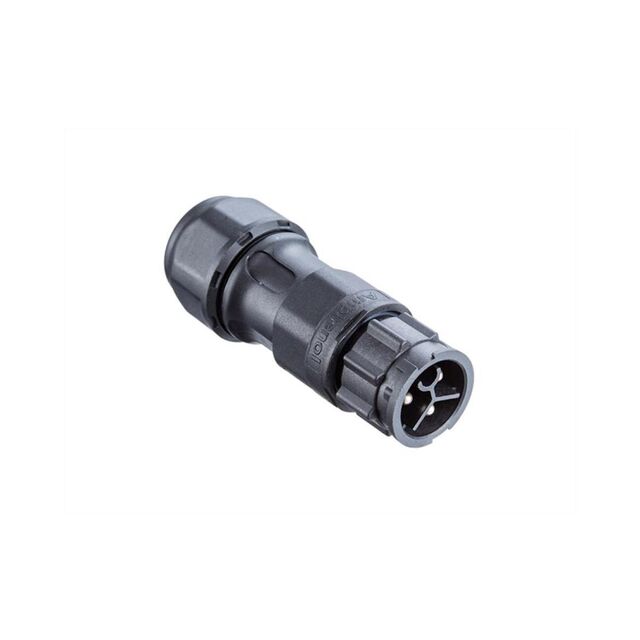

PWC-03BMMB-LL7APP

Active

Amphenol LTW

POWER, PWC, 20A, 03 PINS, FIELD

Search across all available documentation for this part.

Active

Amphenol LTW

POWER, PWC, 20A, 03 PINS, FIELD

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03BMMB-LL7APP

Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 V

Part	Material Flammability Rating	Contact Material	Fastening Type	Termination	Contact Finish - Mating	Mounting Type	Insert Material	Backshell Material, Plating	Ingress Protection	Color	Orientation	Primary Material	Features	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Current Rating (Amps)
Amphenol LTW PWC-03BMMB-LL7APP	UL94 V-0	Copper Alloy	Bayonet Lock	Screw	Silver	Free Hanging (In-Line)	Thermoplastic	Thermoplastic	IP67 - Dust Tight Waterproof	Black	Keyed	Plastic	Backshell Coupling Nut	Unshielded	-40 °C	105 ░C	Male Pins Plug	277 V	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Screw
