1-1452721-1

Active

TE Connectivity Raychem Cable Protection

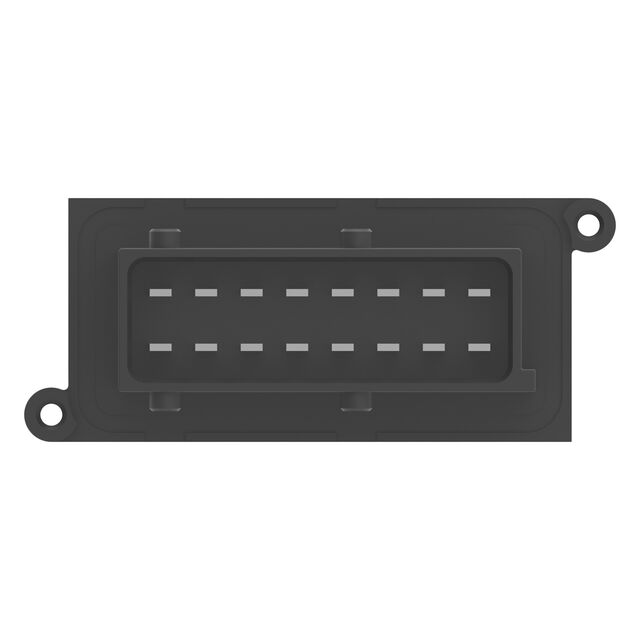

3MM TAB HEADER ASSY 180

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

3MM TAB HEADER ASSY 180

Technical Specifications

Parameters and characteristics for this part

Specification	1-1452721-1

Connector Type	Header
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	34.6 mm
Insulation Height	1.362 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Row Spacing - Mating	0.236 in
Row Spacing - Mating	6 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Height	Insulation Height	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Contact Shape	Shrouding	Fastening Type	Number of Rows	Mounting Type	Insulation Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Positions	Connector Type	Contact Type	Number of Positions Loaded
TE Connectivity Raychem Cable Protection 1-1452721-1	34.6 mm	1.362 in	Copper Alloy	0.236 in	6 mm	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Rectangular	Shrouded - 4 Wall	Push-Pull	2	Through Hole	Black	Board to Cable/Wire	85 °C	-40 °C	5 mm	0.197 "	16	Header	Tab	All
