ISL3153EIUZ
ActiveRenesas Electronics Corporation

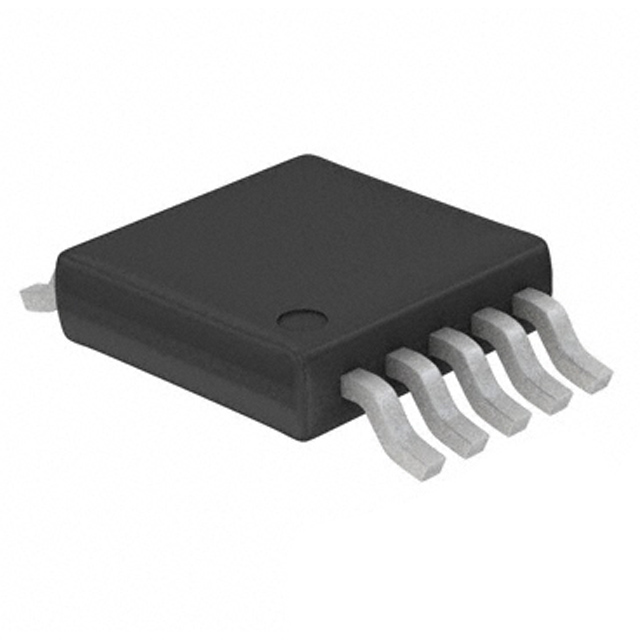

IC TRANSCEIVER FULL 1/1 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISL3153EIUZ
ActiveRenesas Electronics Corporation
IC TRANSCEIVER FULL 1/1 10MSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ISL3153EIUZ | ISL3153 Series |
|---|---|---|
| Data Rate | 1 Mbps | 1 Mbps |
| Duplex | Full | Full |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 10-TFSOP, 10-MSOP | 10-TFSOP, 10-MSOP, 14-SOIC |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Protocol | RS422, RS485 | RS422, RS485 |
| Receiver Hysteresis | 20 mV | 20 mV |
| Supplier Device Package | 10-MSOP | 10-MSOP |
| Type | Transceiver | Transceiver |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.20 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.87 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.49 | |||
| 980 | $ 1.08 | |||
| 2940 | $ 1.01 | |||
| 5880 | $ 0.97 | |||
ISL3153 Series
IC TRANSCEIVER FULL 1/1 10MSOP
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Duplex | Supplier Device Package | Data Rate | Protocol | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | Mounting Type | Receiver Hysteresis | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation ISL3153EIUZ-T | 5.5 V | 4.5 V | Full | 10-MSOP | 1 Mbps | RS422, RS485 | -40 °C | 85 °C | 10-MSOP, 10-TFSOP | Transceiver | Surface Mount | 20 mV | ||
Renesas Electronics Corporation ISL3153EIUZ | 5.5 V | 4.5 V | Full | 10-MSOP | 1 Mbps | RS422, RS485 | -40 °C | 85 °C | 10-MSOP, 10-TFSOP | Transceiver | Surface Mount | 20 mV | ||
Renesas Electronics Corporation ISL3153EIBZ-T | 5.5 V | 4.5 V | Full | 1 Mbps | RS422, RS485 | -40 °C | 85 °C | 14-SOIC | Transceiver | Surface Mount | 20 mV | 3.9 mm | 0.154 in |
Description
General part information
ISL3153 Series
1/1 Transceiver Full RS422, RS485 10-MSOP
