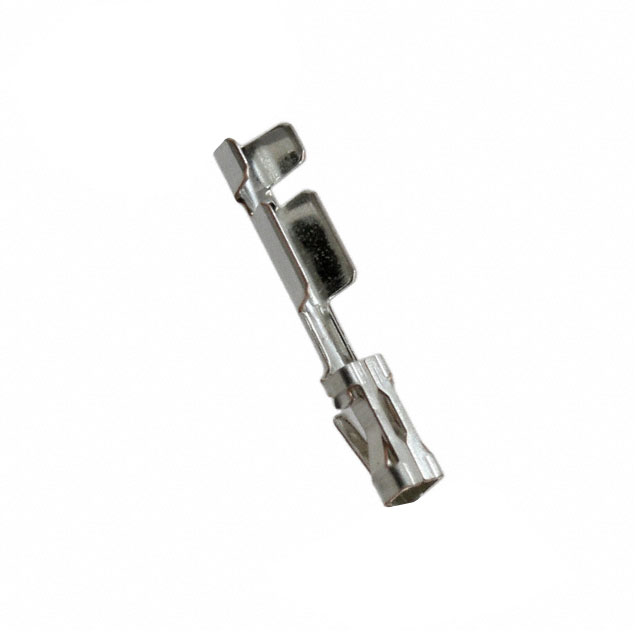

87309-2

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 20-24AWG CRIMP TIN

Part	Contact Termination	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 87309-8	Crimp	Socket	20 AWG	24 AWG	Tin	50 µin	1.27 µm
TE Connectivity AMP Connectors 87309-3	Crimp	Socket	20 AWG	24 AWG	Gold	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 1-87309-4	Crimp	Socket	20 AWG	24 AWG	Gold	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 87309-9	Crimp	Socket	20 AWG	24 AWG	Gold	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 87309-2	Crimp	Socket	20 AWG	24 AWG	Tin	50 µin	1.27 µm
TE Connectivity AMP Connectors 1-87309-2	Crimp	Socket	20 AWG	24 AWG	Gold	15 µin	0.38 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	62500	$ 0.10

General part information

Socket Contact Tin 20-24 AWG Crimp

Technical documentation and resources
