103309-5
ActiveTE Connectivity AMP Connectors

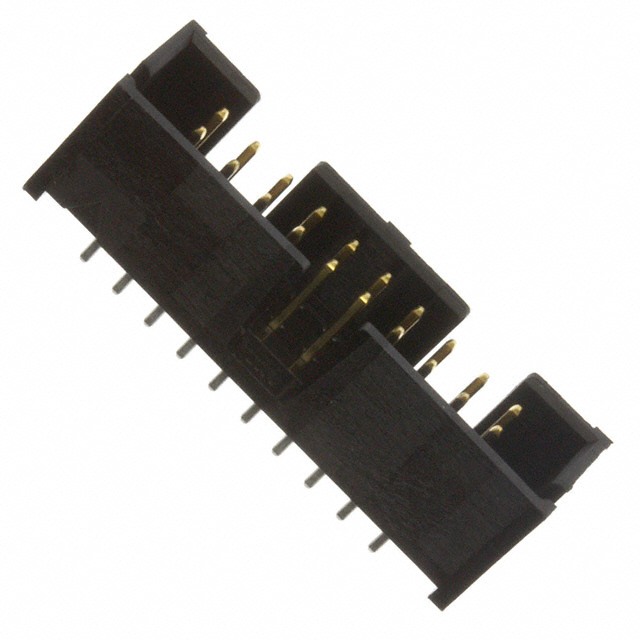

CONN HEADER VERT 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
103309-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 103309-5 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height [custom] | 9.86 mm |
| Insulation Height [custom] | 0.388 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.15 | |
| 75 | $ 2.76 | |||
| 150 | $ 2.49 | |||
| 525 | $ 2.29 | |||
| 1050 | $ 2.05 | |||
| 5025 | $ 1.78 | |||
103309 Series
CONN HEADER VERT 20POS 2.54MM
| Part | Mounting Type | Contact Finish - Post | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Number of Rows | Contact Material | Number of Positions Loaded | Number of Positions | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Termination | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Insulation Height [custom] | Insulation Height [custom] | Contact Type | Contact Length - Mating | Contact Length - Mating [x] | Style | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103309-5 | Through Hole | Tin-Lead | Keying Slot | 30 Áin | 0.76 Ám | Push-Pull | 2 | Brass | All | 20 | 0.1 in | 2.54 mm | 1 A | -65 ░C | 105 ░C | Shrouded - 4 Wall | Solder | UL94 V-0 | 2.54 µm | 100 µin | Square | Gold or Gold-Palladium | 0.12 in | 3.05 mm | Header | 9.86 mm | 0.388 in | Male Pin | 6.1 mm | 0.24 in | Board to Cable/Wire | 2.54 mm | 0.1 in | Black |
Description
General part information
103309 Series
Connector Header Through Hole 20 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
