Q-1S01E0008108i

Active

Amphenol Custom Cable

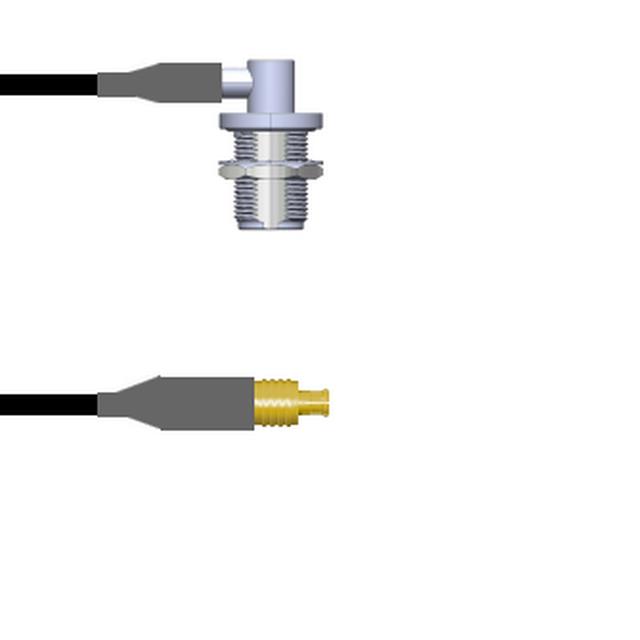

CBL ASSY MCX-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S01E0008108i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S01E0008108i

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1S01E0 Series

Part	Features	1st Contact Gender	Length	Length	Length	Frequency - Max [Max]	2nd Connector	2nd Connector Mounting Type	Color	Cable Type	2nd Contact Gender	1st Connector	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Feature	Style	Length [x]	Length [x]
Amphenol Custom Cable Q-1S01E0008072i	Shielded	Male	6 ft	72 in	1.8 m	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E00082.5M	Shielded	Male	8.2 '	98.4 in	2.5 m	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E0008024i	Shielded	Male		24 "	609.6 mm	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E0008001M	Shielded	Male	3.3 ft	39.4 in	1 m	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E00081.5M	Shielded	Male	4.9 ft	59.1 in	1.5 m	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E0008084i	Shielded	Male	7 ft	84 in	2.1 m	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E0008018i	Shielded	Male				6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1S01E0008108i	Shielded	Male	9 ft	108 in	2.7 m	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E0008048i	Shielded	Male	4 ft	48 in	1200 mm	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type
Amphenol Custom Cable Q-1S01E0008009i	Shielded	Male		9 "	228.6 mm	6000 MHz	N-Type Jack Right Angle	Panel Mount	Black	RG-58	Female	MCX Plug	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	MCX to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 155.24
		25	$ 152.28
		50	$ 149.31
		100	$ 146.34
		250	$ 143.38

Description

General part information

Q-1S01E0 Series

Cable Assembly Coaxial MCX to N-Type RG-58 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
