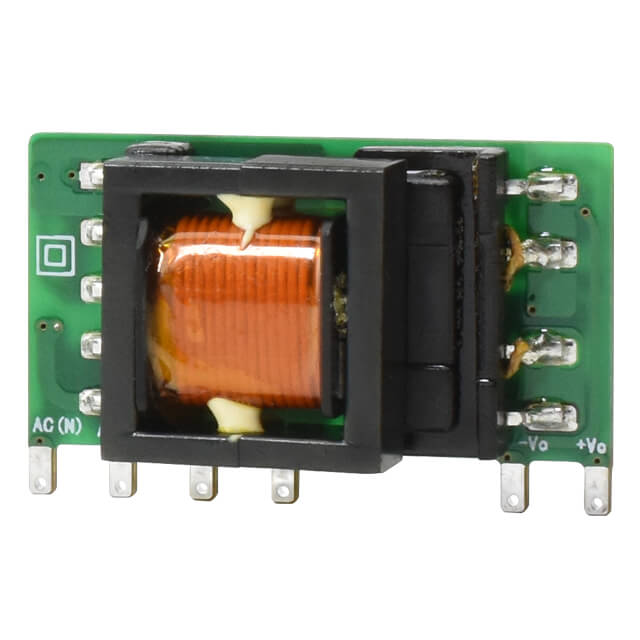

PBO-10C-15

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 10W

PBO-10C-15

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 10W

Description Specifications Series Pricing CAD Documents

Description

General part information

PBO-10C Series

Open Frame AC DC Converters 1 Output 15V 670mA 85 ~ 305 VAC, 100 ~ 430 VDC Input

Technical Specifications

Parameters and characteristics for this part

Specification	PBO-10C-15

Applications	ITE (Commercial), Household Appliances
Approval Agency	cURus, CE
Current - Output (Max)	670 mA
Efficiency	82 %
Line Regulation	1 %
Load Regulation (Percent)	1.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	6-SIP Module
Power (Watts)	10 W
Size / Dimension Height	0.68 in
Size / Dimension Length	1.26 in
Size / Dimension Width	0.59 in
Standard Number	60335-1, 62368-1
Type	Open Frame
Voltage - Input (AC) Maximum	305 VAC
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	430 V
Voltage - Input (DC) Minimum	100 V
Voltage - Output 1	15 V

PBO-10C Series

Part	Line Regulation	Load Regulation (Percent)	Current - Output (Max)	Approval Agency	Number of Outputs	Efficiency	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Standard Number	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Mounting Type	Voltage - Output 1	Type	Voltage - Input (DC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Package / Case
CUI Inc. PBO-10C-9	1 %	1.5 %	1.1 A	CE cURus	1	80 %	0.59 in	0.68 in	1.26 in	60335-1 62368-1	10 W	85 °C	-40 °C	Household Appliances ITE (Commercial)	Through Hole	9 V	Open Frame	430 V	85 VAC	100 V	305 VAC	6-SIP Module
CUI Inc. PBO-10C-15	1 %	1.5 %	670 mA	CE cURus	1	82 %	0.59 in	0.68 in	1.26 in	60335-1 62368-1	10 W	85 °C	-40 °C	Household Appliances ITE (Commercial)	Through Hole	15 V	Open Frame	430 V	85 VAC	100 V	305 VAC	6-SIP Module
CUI Inc. PBO-10C-12	1 %	1.5 %	830 mA	CE cURus	1	82 %	0.59 in	0.68 in	1.26 in	60335-1 62368-1	10 W	85 °C	-40 °C	Household Appliances ITE (Commercial)	Through Hole	12 V	Open Frame	430 V	85 VAC	100 V	305 VAC	6-SIP Module
CUI Inc. PBO-10C-3	1 %	1.5 %	2 A	CE cURus	1	73 %	0.59 in	0.68 in	1.26 in	60335-1 62368-1	6.6 W	85 °C	-40 °C	Household Appliances ITE (Commercial)	Through Hole	3.3 V	Open Frame	430 V	85 VAC	100 V	305 VAC	6-SIP Module
CUI Inc. PBO-10C-5	1 %	1.5 %	2 A	CE cURus	1	77 %	0.59 in	0.68 in	1.26 in	60335-1 62368-1	10 W	85 °C	-40 °C	Household Appliances ITE (Commercial)	Through Hole	5 V	Open Frame	430 V	85 VAC	100 V	305 VAC	6-SIP Module
CUI Inc. PBO-10C-24	1 %	1.5 %	420 mA	CE cURus	1	83 %	0.59 in	0.68 in	1.26 in	60335-1 62368-1	10 W	85 °C	-40 °C	Household Appliances ITE (Commercial)	Through Hole	24 V	Open Frame	430 V	85 VAC	100 V	305 VAC	6-SIP Module
