151250-8422-TB

Active
3M

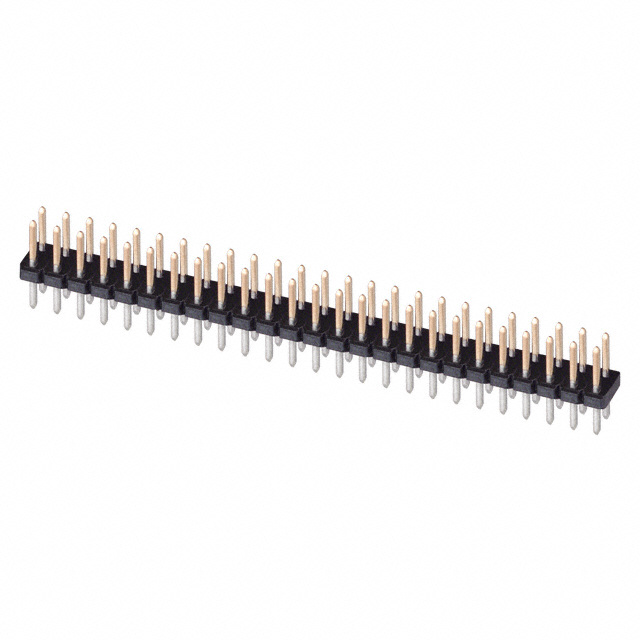

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet1512 Series
151250-8422-TB - 151250-8422-TB,RB

151250-8422-TB

Active
3M

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

DocumentsDatasheet1512 Series

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification151250-8422-TB151250 Series
Connector TypeHeaderHeader
Contact Finish - MatingGoldGold
Contact Finish - PostTin-LeadTin-Lead, Tin
Contact Finish Thickness - Mating30 Áin30 Áin
Contact Finish Thickness - Mating0.76 Ám0.76 Ám
Contact Finish Thickness - Post200 µin200 µin
Contact Finish Thickness - Post5.08 µm5.08 µm
Contact Length - Mating3.86 mm3.3 - 3.86 mm
Contact Length - Mating0.152 in0.13 - 0.152 in
Contact Length - Post0.118 in0.118 in
Contact Length - Post3 mm3 mm
Contact MaterialCopper AlloyCopper Alloy
Contact ShapeSquareSquare
Contact TypeMale PinMale Pin
Fastening TypePush-PullPush-Pull
Insulation ColorBlackBlack
Insulation Height [z]0.06 in0.06 - 0.165 in
Insulation Height [z]1.52 mm1.52 - 4.2 mm
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough HoleThrough Hole, Through Hole, Right Angle
Number of Positions5050
Number of Positions LoadedAllAll
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-55 °C-55 °C
Overall Contact Length8.36 mm7.8 - 8.36 mm
Overall Contact Length0.329 in0.307 - 0.329 in
Pitch - Mating [x]0.079 in0.079 in
Pitch - Mating [x]2 mm2 mm
Row Spacing - Mating0.079 in0.079 in
Row Spacing - Mating2 mm2 mm
ShroudingUnshroudedUnshrouded
StyleBoard to Board, CableBoard to Board, Cable
TerminationSolderSolder

151250 Series

CONN HEADER VERT 50POS 2MM
