SMA5131

Active

Sanken Electric USA Inc.

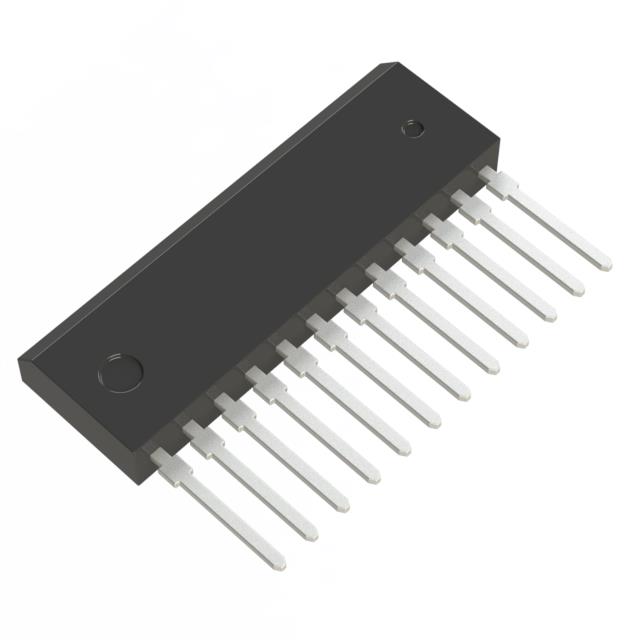

MOSFET 6N-CH 250V 2A 12SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMA5131

Active

Sanken Electric USA Inc.

MOSFET 6N-CH 250V 2A 12SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMA5131

Configuration	6 N-Channel (3-Phase Bridge)
Current - Continuous Drain (Id) @ 25°C	2 A
Drain to Source Voltage (Vdss)	250 V
Mounting Type	Through Hole
Package / Case	12-SIP
Supplier Device Package	12-SIP
Technology	MOSFET (Metal Oxide)

SMA51 Series

Part	Vgs(th) (Max) @ Id	Technology	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Power - Max [Max]	Rds On (Max) @ Id, Vgs [Max]	Operating Temperature	Configuration	Supplier Device Package	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Power - Max
Sanken Electric USA Inc. SMA5127	2 V	MOSFET (Metal Oxide)	Through Hole	150 pF 320 pF	12-SIP	4 W	550 mOhm	150 °C	3 N 3 P-Channel	12-SIP	60 V	4 A
Sanken Electric USA Inc. SMA5117		MOSFET (Metal Oxide)	Through Hole		12-SIP	4 W		150 °C	6 N-Channel (3-Phase Bridge)	12-SIP	250 V	7 A	850 pF	250 mOhm
Sanken Electric USA Inc. SMA5125	2 V	MOSFET (Metal Oxide)	Through Hole	460 pF 1200 pF	12-SIP	4 W		150 °C	3 N 3 P-Channel	12-SIP	60 V	10 A
Sanken Electric USA Inc. SMA5131		MOSFET (Metal Oxide)	Through Hole		12-SIP				6 N-Channel (3-Phase Bridge)	12-SIP	250 V	2 A
Sanken Electric USA Inc. SMA5113		MOSFET (Metal Oxide)	Through Hole	720 pF	12-SIP			150 °C	4 N-Channel	12-SIP	450 V	7 A		1.1 Ohm	4 W 35 W
Sanken Electric USA Inc. SMA5106	2 V	MOSFET (Metal Oxide)	Through Hole	230 pF	12-SIP		550 mOhm	150 °C	4 N-Channel	12-SIP	100 V	4 A			4 W 28 W
Sanken Electric USA Inc. SMA5135	2 V	MOSFET (Metal Oxide)	Through Hole	320 pF 790 pF	12-SIP		220 mOhm 220 mOhm	150 °C	3 N 3 P-Channel (3 Phase Inverter)	12-SIP	60 V	6 A			4 W 29 W
Sanken Electric USA Inc. SMA5133		MOSFET (Metal Oxide)	Through Hole		12-SIP				3 N 3 P-Channel	12-SIP	500 V
Sanken Electric USA Inc. SMA5118		MOSFET (Metal Oxide)	Through Hole		12-SIP	4 W		150 °C	6 N-Channel (3-Phase Bridge)	12-SIP	500 V	5 A	770 pF	1.4 Ohm
Sanken Electric USA Inc. SMA5112		MOSFET (Metal Oxide)	Through Hole	450 pF	12-SIP	4 W		150 °C	6 N-Channel (3-Phase Bridge)	12-SIP	250 V	7 A		500 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.45
		10	$ 2.25

Description

General part information

SMA51 Series

Mosfet Array 250V 2A Through Hole 12-SIP
