1700/20 300

Active

CBL RIBN 20COND TWIST-PAIR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1700/20 300

Active

CBL RIBN 20COND TWIST-PAIR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	600	$ 1.08

Description

General part information

1700 Series

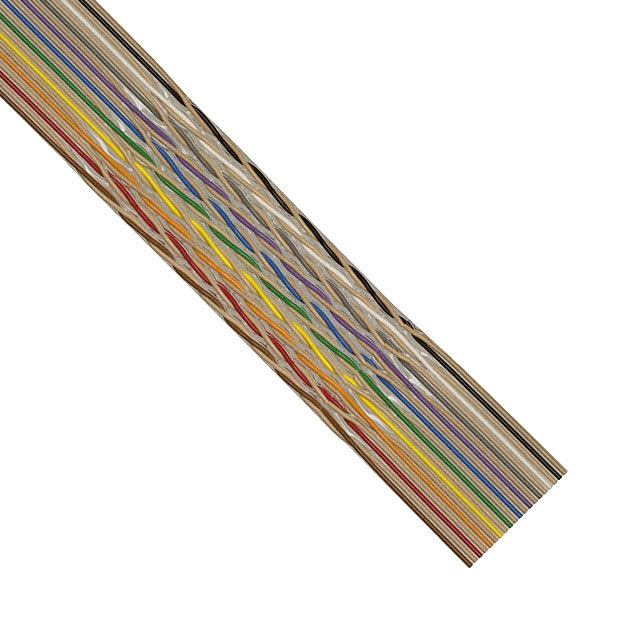

Flat Ribbon Cable Multiple 20 (10 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 300.0' (91.44m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1700/20 300	1700 Series

Adhesive	-	Rubber
Backing, Carrier	-	PVC (Poly Vinyl Chloride)
Cable Type	Flat Twisted Pair	Flat Twisted Pair
Color	-	White, Green, Red, Blue, Black, Brown
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	-	Splice Free
Insulation Resistance	1 GOhms	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple	Multiple
Length	91.44 m	7.62 - 91.44 m
Length	300 ft	25 - 300 ft
Length	-	10 - 100 ft
Length	-	3.05 - 30.48 m
Length	-	22 - 36 yds
Length	-	Enter Number of Feet in Order Quantity
Number of Conductors	20	10 - 64
Number of Conductors	-	30 (15 Pair Twisted)
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 20462	UL Style 20462
Ribbon Thickness	0.08 in	0.08 in
Ribbon Thickness	2.03 mm	2.03 mm
Ribbon Width	1 in	1 - 76.2 mm
Ribbon Width	25.4 mm	25.4 mm
Ribbon Width	-	1.3 - 3 "
Ribbon Width	-	0.8 - 3.2 in
Ribbon Width	-	20.32 - 81.28 mm
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Shelf Life	-	60 Months
Shelf Life Start	-	Date of Manufacture
Shielding	Unshielded	Unshielded
Spool Size	-	30.48 m
Spool Size	-	100 ft
Storage/Refrigeration Temperature	-	27 °C
Storage/Refrigeration Temperature	-	81 °F
Storage/Refrigeration Temperature	-	10 °C
Storage/Refrigeration Temperature	-	10 °C
Tape Type	-	Electrical, Electrical - Printed
Temperature Range	-	80 °C
Temperature Range	-	176 °F
Temperature Range	-	0 °C
Temperature Range	-	80 °C
Thickness	-	0.18 mm
Thickness	-	7.1 mils
Thickness	-	0.0071 in
Usage	-	General Purpose
Voltage	300 V	300 V
Width	-	0.75 in
Width	-	19.05 mm
Width	-	0.75 in
Width	-	2 "
Width	-	50.8 mm
Width	-	25.4 mm
Width	-	1 in
Wire Gauge	28 AWG	28 AWG

1700 Series

3M TWISTED PAIR FLAT CABLE, 1700 SERIES, 1700/50BA, 100 FT

...

Part	Insulation Resistance	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width	Voltage	Ratings	Length [x]	Length [x]	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Number of Conductors	Shielding	Pitch [x]	Pitch [x]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Features
3M 1700/50BA	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm	63.5 mm	2.5 "	300 V	UL Style 20462	100 ft	30.48 m	Multiple	28 AWG	7	36 AWG	Copper, Tinned	50	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C
3M 1700/20 300	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm	1 in		300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	20	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	91.44 m	300 ft	25.4 mm
3M 1700/50TG	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm	63.5 mm	2.5 "	300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	50	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	91.44 m	300 ft
3M 1700/34EL 299'	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm			300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	34	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	91.14 m	299 ft		1.7 in	43.18 mm
3M 1700/34EN 300'	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm			300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	34	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	91.44 m	300 ft		1.7 in	43.18 mm
3M 1700/16SF	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm			300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	16	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	60.96 m	200 '		0.8 in	20.32 mm	Splice Free
3M 1700/34 300	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm			300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	34	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	91.44 m	300 ft		1.7 in	43.18 mm
3M 1700/64 100SF	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm			300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	64	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	15.24 m	50 ft		3.2 in	81.28 mm	Splice Free
3M 1700/50 300SF	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm	63.5 mm	2.5 "	300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	50	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	91.44 m	300 ft				Splice Free
3M 1700/20 200	1 GOhms	Poly-Vinyl Chloride (PVC)	0.08 in	2.03 mm	1 in		300 V	UL Style 20462			Multiple	28 AWG	7	36 AWG	Copper, Tinned	20	Unshielded	0.05 in	1.27 mm	Flat Twisted Pair	-20 C	105 ░C	60.96 m	200 '	25.4 mm
