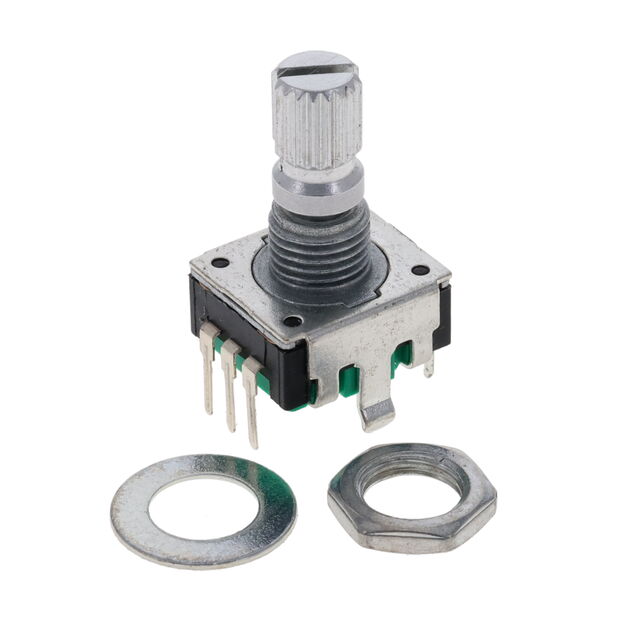

PEC11R-4315K-S0012

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 12PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PEC11R-4315K-S0012

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 12PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC11R-4315K-S0012

Actuator Type	Knurled End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	12 pulses per revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

PEC11R Series

Part	Pulses per Revolution	Orientation	Mounting Type	Encoder Type	Output Type	Termination Style	Rotational Life (Cycles Min) [Min]	Actuator Type [diameter]	Actuator Type
Bourns Inc. PEC11R-4020F-N0024	24 per Revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End
Bourns Inc. PEC11R-4125F-N0018	18	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End
Bourns Inc. PEC11R-4030F-N0012	12 pulses per revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End
Bourns Inc. PEC11R-4225F-N0024	24 per Revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End
Bourns Inc. PEC11R-4230F-N0024	24 per Revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End
Bourns Inc. PEC11R-4315F-S0012	12 pulses per revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End
Bourns Inc. PEC11R-4220K-S0024	24 per Revolution	Vertical		Incremental	2-Bit Quadrature	PC Pin	30K	6 mm	Knurled End
Bourns Inc. PEC11R-4315K-S0012	12 pulses per revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Knurled End
Bourns Inc. PEC11R-4225K-S0024	24 per Revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Knurled End
Bourns Inc. PEC11R-4330F-S0012	12 pulses per revolution	Vertical	Panel PCB Through Hole	Mechanical	Quadrature (Incremental)	PC Pin	30K	6 mm	Flatted End

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.82
		10	$ 1.60
		25	$ 1.44
		75	$ 1.38
		150	$ 1.33
		300	$ 1.27
		450	$ 1.05
		975	$ 0.99
		4950	$ 0.97

Description

General part information

PEC11R Series

Rotary Encoder Mechanical 12 Quadrature (Incremental) Vertical
