BQ28Z610EVM-532
ActiveTexas Instruments
1-CELL TO 2-CELL PROGRAMMABLE BA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BQ28Z610EVM-532
ActiveTexas Instruments
1-CELL TO 2-CELL PROGRAMMABLE BA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ28Z610EVM-532 | BQ28Z610 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Fault Protection | - | Over Temperature, Over/Under Voltage, Over Current, Short Circuit |
| Function | Fuel Gauge | Multi-Function Controller, Fuel Gauge |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Number of Cells | - | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 12-VFDFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 12-SON (2.5x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ28Z610 | BQ28Z610 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 178.80 | |
BQ28Z610 Series
BATTERY FUEL GAUGE WITH INTEGRATED PROTECTOR FOR 1-2 SERIES PACKS 12-SON -40 TO 85
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Function | Battery Chemistry | Mounting Type | Fault Protection | Interface | Supplier Device Package | Number of Cells [Min] | Number of Cells [Max] | Supplied Contents | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ28Z610DRZR | 85 °C | -40 °C | 12-VFDFN Exposed Pad | Multi-Function Controller | Lithium Ion/Polymer | Surface Mount | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | I2C | 12-SON (2.5x4) | 1 | 2 | |||
Texas Instruments BQ28Z610EVM-532 | Fuel Gauge | Board(s) | Power Management | BQ28Z610 | ||||||||||
Texas Instruments BQ28Z610DRZT | 85 °C | -40 °C | 12-VFDFN Exposed Pad | Multi-Function Controller | Lithium Ion/Polymer | Surface Mount | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | I2C | 12-SON (2.5x4) | 1 | 2 | |||
Texas Instruments BQ28Z610DRZT-R1 | 85 °C | -40 °C | 12-VFDFN Exposed Pad | Multi-Function Controller | Lithium Ion/Polymer | Surface Mount | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | I2C | 12-SON (2.5x4) | 1 | 2 | |||
Texas Instruments BQ28Z610DRZR-R1 | 85 °C | -40 °C | 12-VFDFN Exposed Pad | Multi-Function Controller | Lithium Ion/Polymer | Surface Mount | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | I2C | 12-SON (2.5x4) | 1 | 2 |
Description
General part information
BQ28Z610 Series

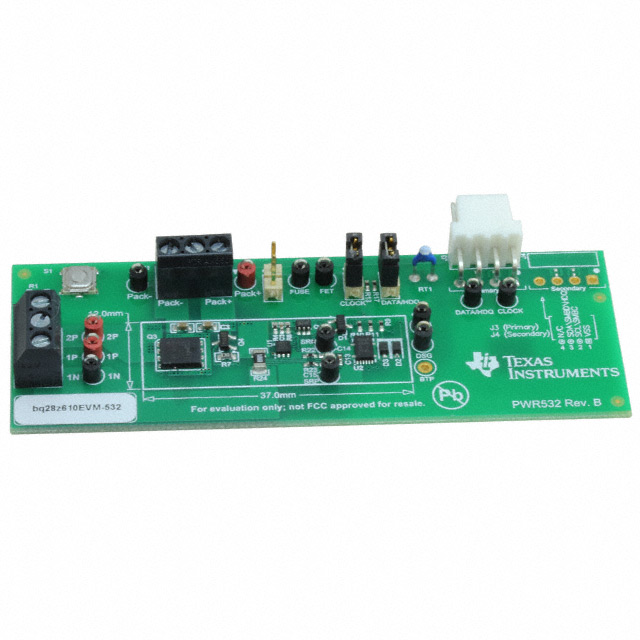

BQ28Z610 Fuel Gauge Power Management Evaluation Board
Documents
Technical documentation and resources
