Specification	ADF6-10-03.5-L-4-2-A-TR

Connector Type	High Density Array, FEMALE
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Board Guide
Height Above Board	0.147 in
Mated Stacking Height Options	5mm, 10mm, 12mm, 7mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	4
Pitch	0.025 in

ADF6 Series

Board to Board & Mezzanine Connectors 0.635 mm AcceleRate HD High-Density 4-Row Socket

Part	Contact Finish	Mated Stacking Height Options	Connector Type	Number of Rows	Height Above Board	Mounting Type	Contact Finish Thickness	Features	Pitch	Number of Positions

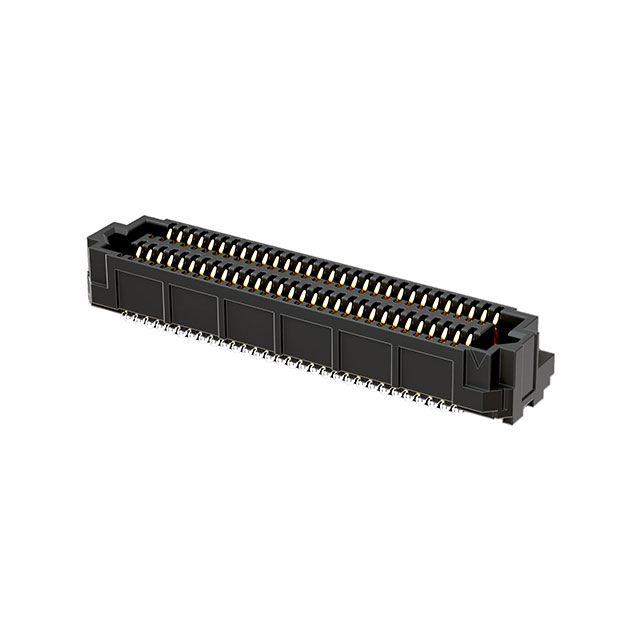

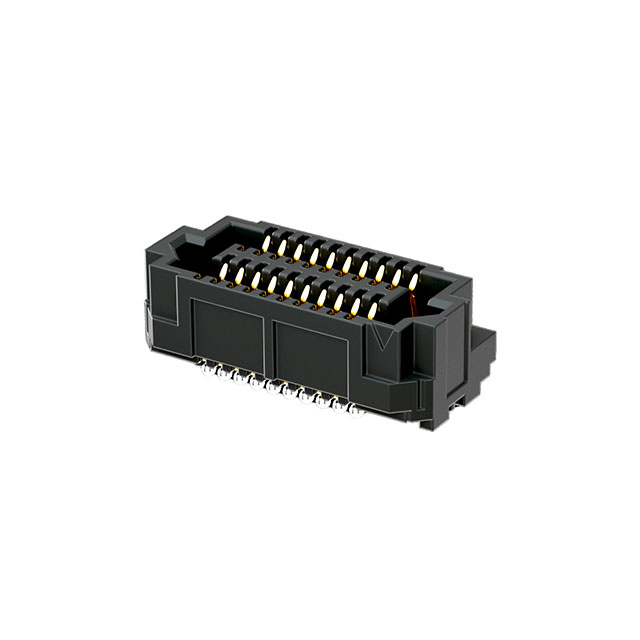

Samtec Inc. ADF6-10-03.5-L-4-2-A-TR	Gold	10mm 12mm 5mm 7mm	FEMALE High Density Array	4	0.147 in	Surface Mount	10 Ąin	Board Guide	0.025 in	40
Samtec Inc. ADF6-30-03.5-L-4-2-A-TR	Gold	10mm 12mm 5mm 7mm	FEMALE High Density Array	4	0.147 in	Surface Mount	10 Ąin	Board Guide	0.025 in	120

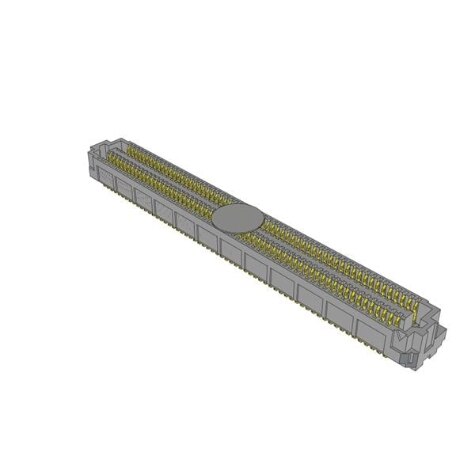

Samtec Inc. ADF6-60-03.5-L-4-2-A-TR	Gold	10mm 12mm 5mm 7mm	FEMALE High Density Array	4	0.147 in	Surface Mount	10 Ąin	Board Guide	0.025 in	240
Samtec Inc. ADF6-50-03.5-L-4-2-A-TR	Gold	10mm 12mm 5mm 7mm	FEMALE High Density Array	4	0.147 in	Surface Mount	10 Ąin	Board Guide	0.025 in	200

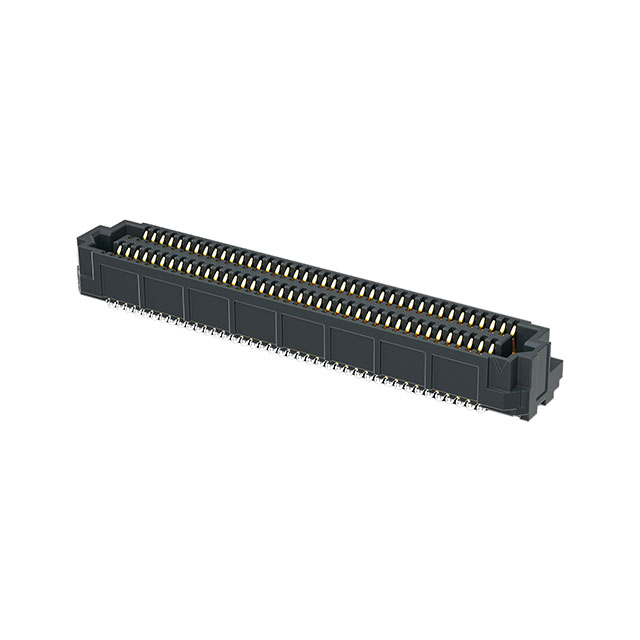

Samtec Inc. ADF6-40-03.5-L-4-2-A-TR	Gold	10mm 12mm 5mm 7mm	FEMALE High Density Array	4	0.147 in	Surface Mount	10 Ąin	Board Guide	0.025 in	160

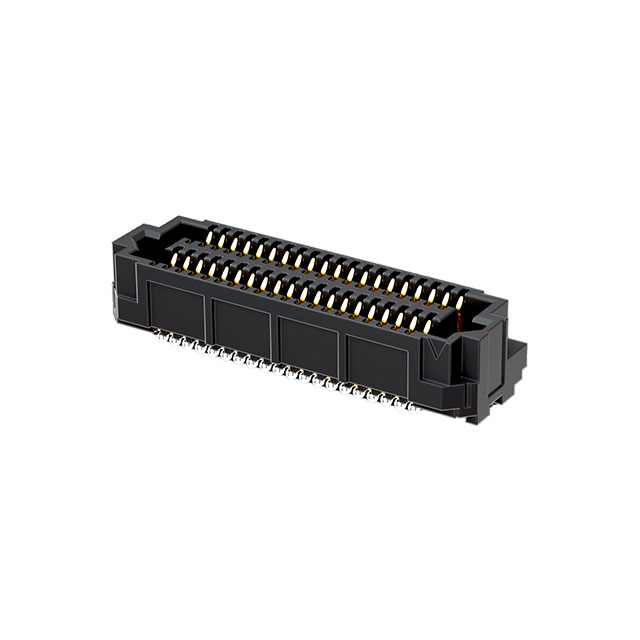

Samtec Inc. ADF6-20-03.5-L-4-2-A-TR	Gold	10mm 12mm 5mm 7mm	FEMALE High Density Array	4	0.147 in	Surface Mount	10 Ąin	Board Guide	0.025 in	80
