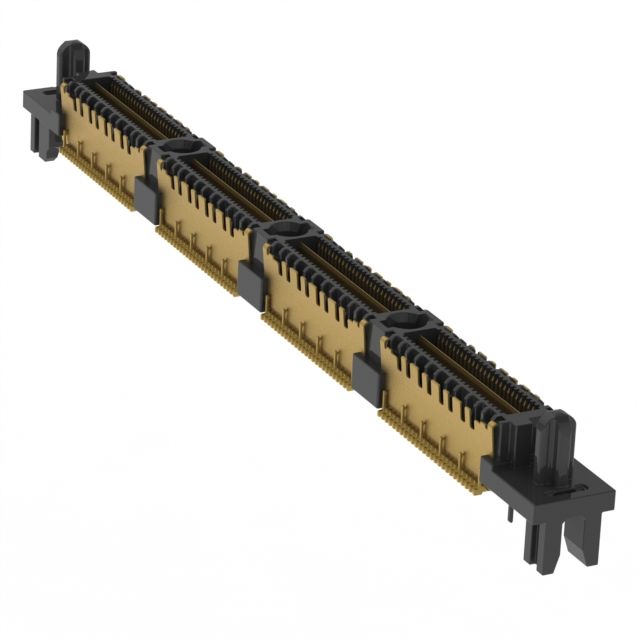

QMSS-104-01-L-D-EM2

Active

Samtec Inc.

CONN HDR 208POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 208POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	QMSS-104-01-L-D-EM2

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Shielded, Ground Bus (Plane)
Height Above Board	0.265 in
Height Above Board	6.73 mm
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	208
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Number of Rows	Contact Finish	Connector Type	Mated Stacking Heights
Samtec Inc. QMSS-104-06.75-L-D-A-GP	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.265 in	6.73 mm	10 Áin	0.25 Ám	208	Surface Mount	2	Gold	Header Outer Shroud Contacts	11 mm
Samtec Inc. QMSS-104-01-L-D-EM2	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.265 in	6.73 mm	10 Áin	0.25 Ám	208	Surface Mount	2	Gold	Header Outer Shroud Contacts	11 mm
Samtec Inc. QMSS-104-06.75-L-D-A-K	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Pick and Place Shielded	0.265 in	6.73 mm	10 Áin	0.25 Ám	208	Surface Mount	2	Gold	Header Outer Shroud Contacts	11 mm
Samtec Inc. QMSS-104-06.75-L-D-A-GP-K	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Pick and Place Shielded	0.265 in	6.73 mm	10 Áin	0.25 Ám	208	Surface Mount	2	Gold	Header Outer Shroud Contacts	11 mm
Samtec Inc. QMSS-104-06.75-L-D	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.265 in	6.73 mm	10 Áin	0.25 Ám	208	Surface Mount	2	Gold	Header Outer Shroud Contacts	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	26	$ 41.80

General part information

208 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
