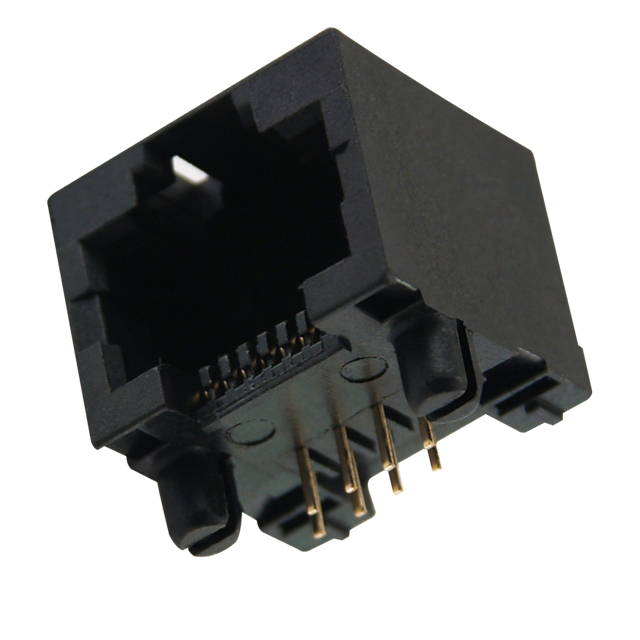

GWX-N-88

Active

Kycon, Inc.

8P8C MOD JACK ROHS COMPLIANT

Search across all available documentation for this part.

Active

Kycon, Inc.

8P8C MOD JACK ROHS COMPLIANT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.09

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded

Technical documentation and resources

Specification	GWX-N-88	GWX Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Housing Material	Thermoplastic	Thermoplastic
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Orientation	90 °	90 °
Shielding	Unshielded	Unshielded, Shielded, EMI Finger, Shielded
Tab Direction	Up	Up
Termination	Solder	Solder

Part	Number of Ports	Orientation	Contact Finish Thickness	Shielding	Number of Rows	Number of Positions/Contacts	Mounting Type	LED Color	Contact Finish	Tab Direction	Connector Type	Housing Material	Termination	Contact Material
Kycon, Inc. GWX-SMT-N-88-50-TR	1	90 °	Flash	Unshielded	1	8p8c (RJ45, Ethernet)	Surface Mount	Does Not Contain LED	Gold	Up	Jack	Thermoplastic	Solder	Phosphor Bronze
Kycon, Inc. GWX-S9-88	1	90 °	Flash	Shielded, EMI Finger	1	8p8c (RJ45, Ethernet)	Through Hole	Does Not Contain LED	Gold	Up	Jack	Thermoplastic	Solder	Phosphor Bronze
Kycon, Inc. GWX-SMT-S-88-TR	1	90 °	Flash	Shielded	1	8p8c (RJ45, Ethernet)	Surface Mount	Does Not Contain LED	Gold	Up	Jack	Thermoplastic	Solder	Phosphor Bronze
Kycon, Inc. GWX-N-88	1	90 °	Flash	Unshielded	1	8p8c (RJ45, Ethernet)	Through Hole	Does Not Contain LED	Gold	Up	Jack	Thermoplastic	Solder	Phosphor Bronze
