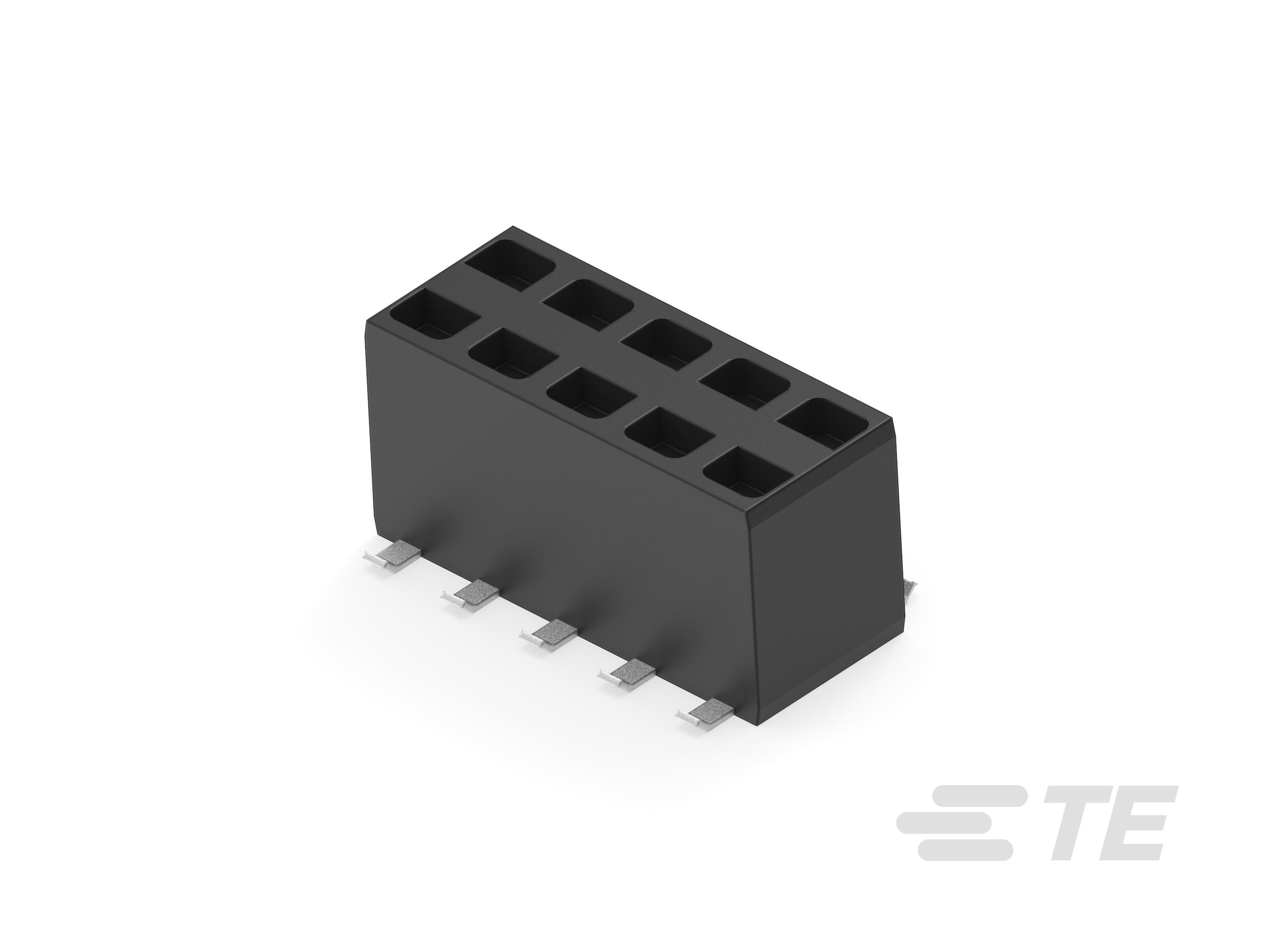

Specification	969973-5

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	31.5 µin
Contact Finish Thickness - Post	98.4 µin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.244 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Style	Board
Termination	Solder

AMPMODU HV-100/HV-190 Series

...

Part	Connector Type	Termination	Pitch - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Contact Length - Post	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Contact Type	Fastening Type	Contact Finish - Mating	Insulation Color	Mounting Type	Style	Insulation Height	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Row Spacing - Mating
TE Connectivity AMP Connectors 3-215298-2	Receptacle	Kinked Pin Solder	0.1 in	98.4 µin	32	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Tin	Green	Through Hole	Board	0.276 in	98.4 µin	Beryllium Copper	Glass Filled Polyester	Square
TE Connectivity AMP Connectors 3-215298-6	Receptacle	Kinked Pin Solder	0.1 in	98.4 µin	36	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Tin	Green	Through Hole	Board	0.276 in	98.4 µin	Beryllium Copper	Glass Filled Polyester	Square
TE Connectivity AMP Connectors 1-215299-8	Receptacle	Kinked Pin Solder	0.1 in	31.5 µin	18	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Gold	Green	Through Hole	Board	0.335 in
TE Connectivity AMP Connectors 215309-9	Receptacle	Kinked Pin Solder	0.1 in	31.5 µin	18	UL94 V-0	0.122 in	Tin	All	2	Female Socket	Push-Pull	Gold	Black Black or Green Green	Through Hole	Board	0.335 in	98.4 µin	Phosphor Bronze	Glass Filled Polyester	Square	0.1 in
TE Connectivity AMP Connectors 215297-4	Receptacle	Kinked Pin Solder	0.1 in	31.5 µin	4	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Gold	Black Black or Green Green	Through Hole	Board	0.276 in
TE Connectivity AMP Connectors 1-215307-4	Receptacle	Kinked Pin Solder	0.1 in	31.5 µin	28	UL94 V-0	0.122 in	Tin	All	2	Female Socket	Push-Pull	Gold	Green	Through Hole	Board	0.276 in	98.4 µin	Phosphor Bronze	Glass Filled Polyester	Square	0.1 in
TE Connectivity AMP Connectors 3-215299-2	Receptacle	Kinked Pin Solder	0.1 in	31.5 µin	32	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Gold	Green	Through Hole	Board	0.335 in	118.1 µin	Phosphor Bronze	Glass Filled Polyester	Square
TE Connectivity AMP Connectors 1-215299-6	Receptacle	Kinked Pin Solder	0.1 in	31.5 µin	16	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Gold	Green	Through Hole	Board	0.335 in	118.1 µin	Phosphor Bronze	Glass Filled Polyester	Square
TE Connectivity AMP Connectors 2-215300-0	Receptacle	Kinked Pin Solder	0.1 in	100 µin	20	UL94 V-0	0.122 in	Tin	All	1	Female Socket	Push-Pull	Tin	Green	Through Hole	Board	0.335 in	100 Ąin	Phosphor Bronze	Glass Filled Polyester	Square
TE Connectivity AMP Connectors 216602-5	Receptacle	Solder	0.1 in	31.5 µin	5	UL94 V-0	0.126 in	Tin	All	1	Female Socket	Push-Pull	Gold	Green	Right Angle Through Hole	Board	0.126 in	118.1 µin	Phosphor Bronze	Glass Filled Polyester	Square
