216602-5

Active

TE Connectivity Raychem Cable Protection

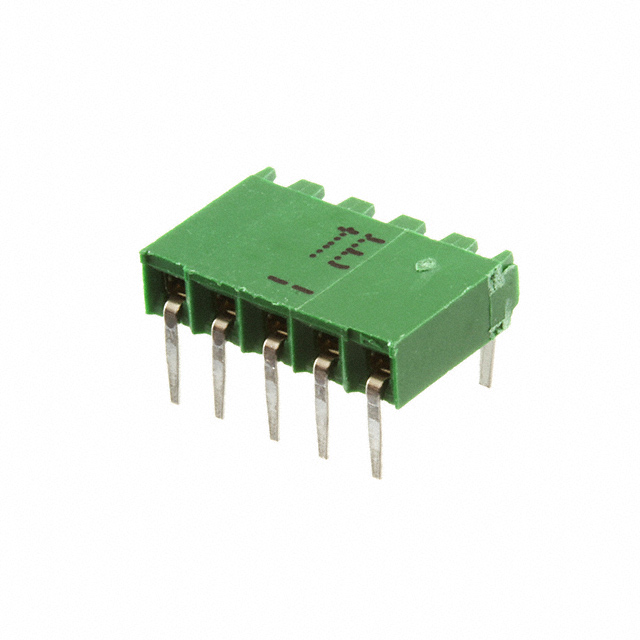

CONN RCPT 5POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

216602-5

Active

TE Connectivity Raychem Cable Protection

CONN RCPT 5POS 0.1 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	216602-5

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	31.5 µin
Contact Finish Thickness - Mating	0.8 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

AMPMODU HV-100/HV-190 Series

Headers & Wire Housings 2X17P HV190FEDERLEI

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Termination	Fastening Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Shape	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Type	Mounting Type	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]
TE Connectivity Raychem Cable Protection 3-215298-2	2.5 Ám	98.4 Áin	Polyester Glass Filled	Green	Kinked Pin Solder	Push-Pull	UL94 V-0	7 mm	0.276 in	Square	All	1	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	98.4 µin	2.5 µm	Beryllium Copper	Female Socket	Through Hole	Tin
TE Connectivity Raychem Cable Protection 3-215298-6	98.4 µin		Polyester Glass Filled	Green	Kinked Pin Solder	Push-Pull	UL94 V-0	7 mm	0.276 in	Square	All	1	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	98.4 µin	2.5 µm	Beryllium Copper	Female Socket	Through Hole	Tin	36	2.5 µm
TE Connectivity Raychem Cable Protection 215309-9	98.4 µin		Polyester Glass Filled	Black or Green	Kinked Pin Solder	Push-Pull	UL94 V-0			Square	All	2	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	31.5 µin	0.8 µm	Phosphor Bronze	Female Socket	Through Hole	Tin	18	2.5 µm	Gold	0.335 "	8.51 mm	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 1-215307-4	98.4 µin		Polyester Glass Filled	Green	Kinked Pin Solder	Push-Pull	UL94 V-0	7 mm	0.276 in	Square	All	2	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	31.5 µin	0.8 µm	Phosphor Bronze	Female Socket	Through Hole	Tin	28	2.5 µm	Gold			2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 1-215299-6	3 µm	118.1 µin	Polyester Glass Filled	Green	Kinked Pin Solder	Push-Pull	UL94 V-0			Square	All	1	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	31.5 µin	0.8 µm	Phosphor Bronze	Female Socket	Through Hole	Tin			Gold	0.335 "	8.51 mm			16
TE Connectivity Raychem Cable Protection 2-215300-0	2.54 µm	100 µin	Polyester Glass Filled	Green	Kinked Pin Solder	Push-Pull	UL94 V-0			Square	All	1	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	Female Socket	Through Hole	Tin	20			0.335 "	8.51 mm
TE Connectivity Raychem Cable Protection 216602-5	3 µm	118.1 µin	Polyester Glass Filled	Green	Solder	Push-Pull	UL94 V-0			Square	All	1		3.2 mm	Receptacle	0.1 in	2.54 mm	31.5 µin	0.8 µm	Phosphor Bronze	Female Socket	Through Hole Right Angle	Tin			Gold	0.126 in	3.2 mm				0.126 in
TE Connectivity Raychem Cable Protection 829265-3	3 µm	118.1 µin	Polybutylene Terephthalate (PBTP)	Black or Green	Solder	Push-Pull				Square	All	1			Receptacle Bottom or Top Entry	0.1 in	2.54 mm	31.5 µin	0.8 µm	Copper Alloy	Female Socket	Through Hole	Tin			Gold	0.256 in	6.5 mm				0.12 in	3.05 mm
TE Connectivity Raychem Cable Protection 215307-8	98.4 µin		Polyester Glass Filled	Black or Green	Kinked Pin Solder	Push-Pull	UL94 V-0	7 mm	0.276 in	Square	All	2	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	31.5 µin	0.8 µm	Phosphor Bronze	Female Socket	Through Hole	Tin		2.5 µm	Gold			2.54 mm	0.1 in	16
TE Connectivity Raychem Cable Protection 2-215307-6	98.4 µin		Polyester Glass Filled	Green	Kinked Pin Solder	Push-Pull	UL94 V-0	7 mm	0.276 in	Square	All	2	0.122 "	3.1 mm	Receptacle	0.1 in	2.54 mm	31.5 µin	0.8 µm	Phosphor Bronze	Female Socket	Through Hole	Tin	52	2.5 µm	Gold			2.54 mm	0.1 in
