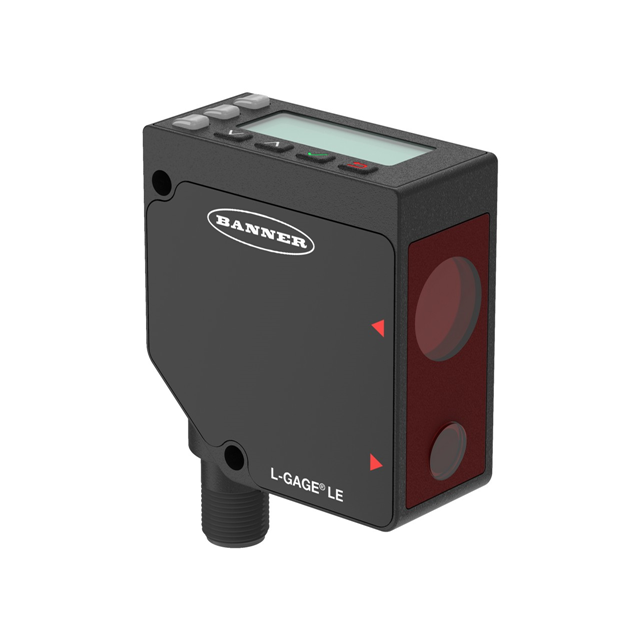

LE550DC1Q

Active

BANNER ENGINEERING

LASER DISPLACEMENT SENSOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LASER DISPLACEMENT SENSOR

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Output Type
BANNER ENGINEERING LE550DC1Q	70 mA	12 V	30 VDC	55 °C	-20 C	3.94 "	100 mm	39.37 in	1000 mm
BANNER ENGINEERING LE550KC1Q	70 mA	12 V	30 VDC	55 °C	-20 C	3.94 "	100 mm	39.37 in	1000 mm
BANNER ENGINEERING LE550UQ	70 mA	12 V	30 VDC	55 °C	-20 C	3.94 "	100 mm	39.37 in	1000 mm	Analog
BANNER ENGINEERING LE550IQ	70 mA	12 V	30 VDC	55 °C	-20 C	3.94 "	100 mm	39.37 in	1000 mm	Analog

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 778.00
Newark	Each	1	$ 790.00

General part information

Optical Sensor 3.94" ~ 39.37" (10 ~ 100cm) Output

Technical documentation and resources
