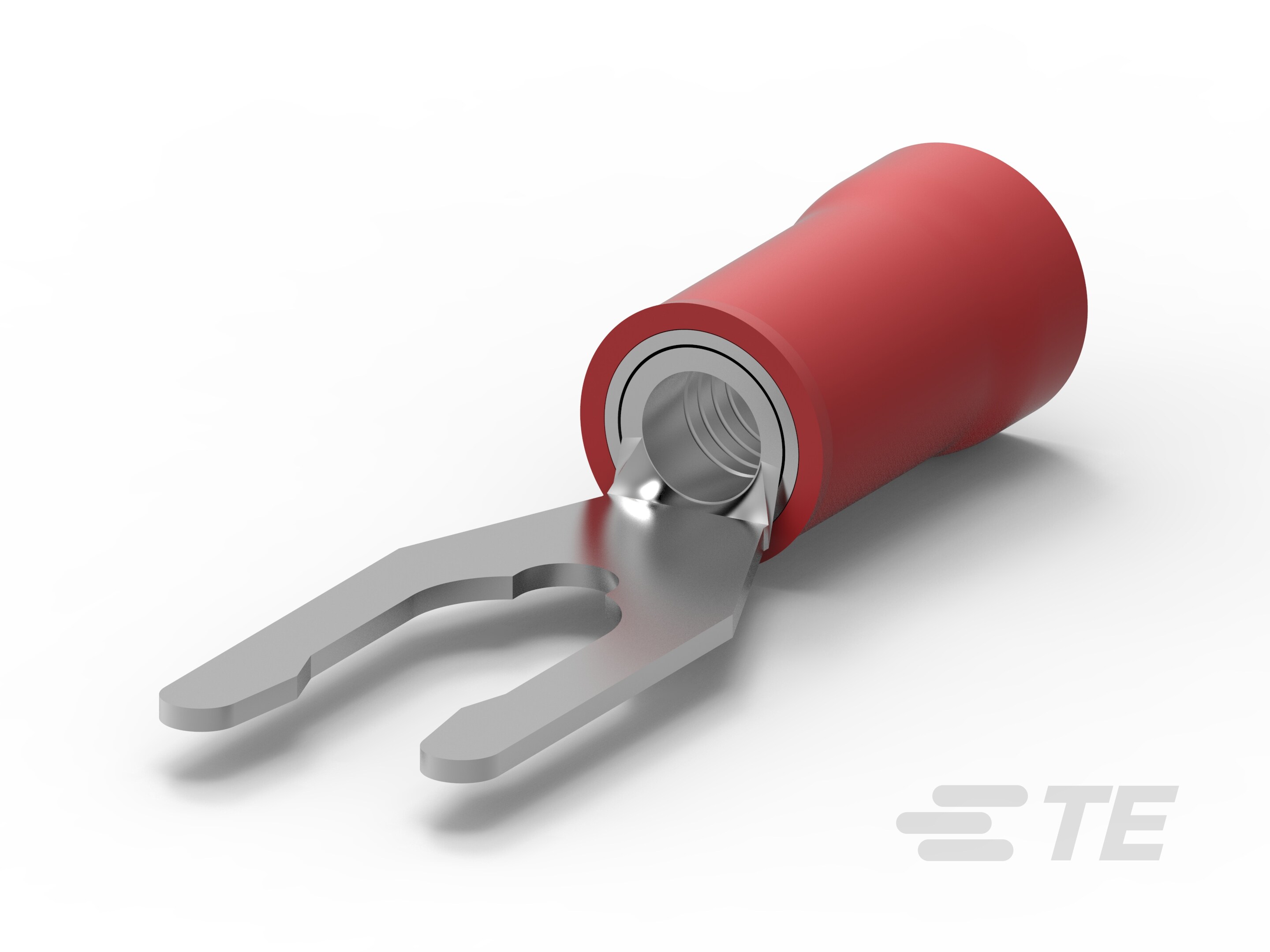

Specification	52410-1

Color	Red
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.125 in
Insulation Diameter (Min)	0.08 in
Length - Overall	0.979 in
Length - Ring Center to Termination	0.27 in
Length - Termination	0.414 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening	0.164 in
Width - Outer Edges	0.281 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

52410 Series

Part	Color	Insulation	Mounting Type	Termination	Length - Overall	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Features	Terminal Type	Contact Material	Width - Outer Edges	Stud/Tab Size	Material - Insulation	Tongue Inside Opening	Length - Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Ring Center to Termination
TE Connectivity AMP Connectors 52410-1	Red	Insulated	Free Hanging (In-Line)	Crimp	0.979 in	Tin	16 AWG	22 AWG	Serrated Termination	Snap Spring	Phosphor Bronze	0.281 in	8 Stud	Nylon PA Polyamide	0.164 in	0.414 in	0.08 in	0.125 in	0.27 in
TE Connectivity AMP Connectors 8-52410-1	Red	Insulated	Free Hanging (In-Line)	Crimp	0.979 in	Tin	16 AWG	22 AWG	Serrated Termination	Snap Spring	Phosphor Bronze	0.281 in	8 Stud	Nylon PA Polyamide	0.164 in	0.414 in	0.08 in	0.125 in	0.27 in
