Specification	2195763-1

Antenna Type	Ceramic Patch
Applications	GNSS
Features	LNA, Cable, 70mm
Frequency (Center/Band)	1.5825 GHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	2 GHz
Frequency Group Minimum (UHF)	1 GHz
Frequency Range (Max)	1.606 GHz
Frequency Range (Min)	1.559 GHz
Gain	26 dBi
Height (Max)	0.354 in
Mounting Type	Adhesive
Number of Bands	1
RF Family/Standard	Navigation
Termination	IPEX MHF1, U.FL (UMCC)
Termination Type	U.FL, I-PEX MHF1
VSWR	3

GNSS Series

Part	Termination	Height (Max)	RF Family/Standard	Applications	Antenna Type	Number of Bands	Frequency (Center)	Frequency (Band)	Mounting Type	Gain	Frequency Group	Frequency Group Maximum (UHF)	Frequency Group Minimum (UHF)	Return Loss	Frequency Range (Band 1) Maximum	Frequency Range (Band 2) Minimum	Frequency Range (Band 1) Minimum	Frequency Range (Band 2) Maximum	Termination Type	Frequency Range (Min)	Frequency Range (Max)	Features	Frequency (Center/Band)	VSWR	Power - Max	Frequency (Center/Band)	Frequency (Center/Band) - 3	Frequency (Center/Band) - 2	Frequency (Center/Band) - 1	Frequency Range (Band 3) Maximum	Frequency Range (Band 3) Minimum
TE Connectivity AMP Connectors 2195765-1	Solder	0.02 in	802.15.4 Bluetooth Navigation WiFi	Bluetooth GNSS Wi‑Fi Zigbee™	Chip	2	1.575 GHz	2.45 GHz	Surface Mount	0.69 dBi 0.97 dBi	UHF	2 GHz 3 GHz	1 GHz 2 GHz	-10 dB	1.58 GHz	2.4 GHz	1.57 GHz	2.5 GHz
TE Connectivity AMP Connectors 2195768-1	IPEX MHF1 U.FL (UMCC)	0.25 in	Navigation	GNSS GPS	Ceramic Patch	1			Adhesive	19 dBi	UHF	2 GHz	1 GHz	-10 dB					I-PEX MHF1 U.FL	1.573 GHz	1.577 GHz	83mm Cable LNA	1.575 GHz
TE Connectivity AMP Connectors 2195762-1	Pin	0.161 in	Navigation	GNSS	Ceramic Patch	1			Adhesive	4.1 dBi 5.7 dBi	UHF	2 GHz	1 GHz							1.559 GHz	1.606 GHz		1.5825 GHz	3
TE Connectivity AMP Connectors 2195763-1	IPEX MHF1 U.FL (UMCC)	0.354 in	Navigation	GNSS	Ceramic Patch	1			Adhesive	26 dBi	UHF	2 GHz	1 GHz						I-PEX MHF1 U.FL	1.559 GHz	1.606 GHz	70mm Cable LNA	1.5825 GHz	3
TE Connectivity AMP Connectors 2195760-1	IPEX MHF1 U.FL (UMCC)	0.591 in	802.15.4 Bluetooth Navigation WiFi	Bluetooth GNSS Wi‑Fi Zigbee™	PCB Trace	3			Adhesive	1 dBi 3 dBi	Wide Band				1.606 GHz	2.4 GHz	1.559 GHz	2.5 GHz	I-PEX MHF1 U.FL			150mm Cable		2.5	10 VA	1.5825GHz 2.45GHz 5.5125GHz	5.5125 GHz	2.45 GHz	1.5825 GHz	5.875 GHz	5.15 GHz
TE Connectivity AMP Connectors 2195761-1	Pin	0.177 "	Navigation	GNSS	Ceramic Patch	1			Adhesive	4.7 dBi 4.8 dBi	UHF	2 GHz	1 GHz							1.559 GHz	1.606 GHz		1.5825 GHz	3

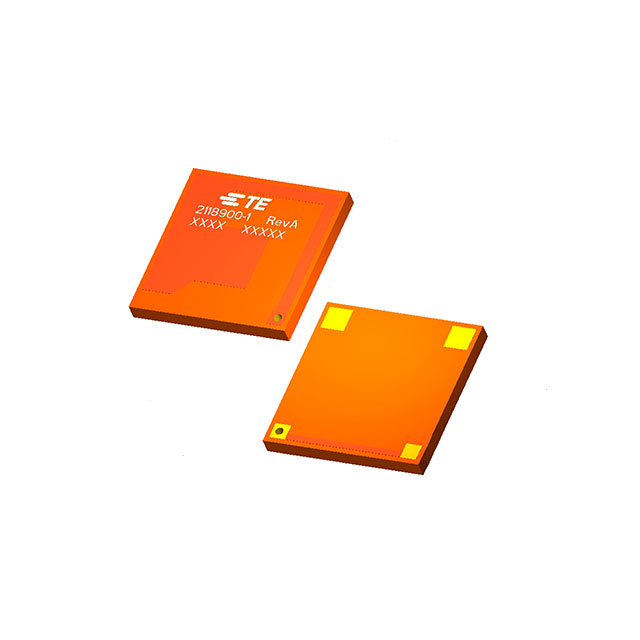

TE Connectivity AMP Connectors 2118900-1		0.039 in	Navigation	GNSS	Chip	1			Surface Mount		UHF	2 GHz	1 GHz							1.56 GHz	1.602 GHz		1.581 GHz	2	3 VA
TE Connectivity AMP Connectors 2195764-1	Solder	0.028 in	Navigation	GNSS	Chip	1			Surface Mount	3.2 dBi	UHF	2 GHz	1 GHz							1.57 GHz	1.615 GHz		1.5925 GHz	2	10 VA

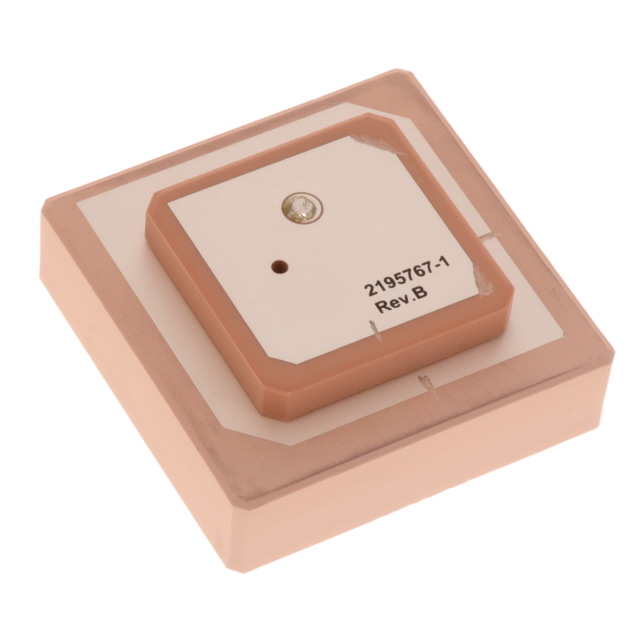

TE Connectivity AMP Connectors 2195767-1	Pin	0.585 in	Navigation	GNSS	Ceramic Patch	2	1.227 GHz	1.575 GHz	Adhesive	4.5 dBi 5 dBi	UHF	2 GHz	1 GHz	-10 dB	1.23 GHz	1.572 GHz	1.224 GHz	1.587 GHz
TE Connectivity AMP Connectors 2195766-1	Pin	0.35 in	Navigation	GNSS	Ceramic Patch	2	1.227 GHz	1.575 GHz	Adhesive	4 dBi 5 dBi	UHF	2 GHz	1 GHz	-10 dB	1.23 GHz	1.572 GHz	1.224 GHz	1.587 GHz
