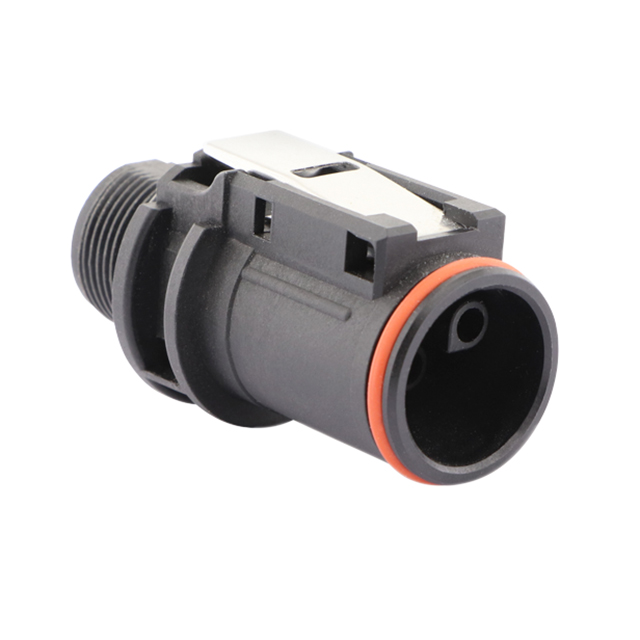

UTL5103G1S

Active

Souriau-Sunbank by Eaton

CONN PLG HSG F/M 4POS PNL MNT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLG HSG F/M 4POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	UTL5103G1S

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	10-3
Shielding	Unshielded
Type	For Female Sockets and Male Pins

Part	Housing Color	Orientation	Insert Material	Contact Size	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Shielding	Shell Size - Insert	Ingress Protection	Connector Type	Note	Contact Type	Type	Mounting Feature
Souriau-Sunbank by Eaton UTL5103G1P	Black	Keyed	Nylon Polyamide (PA)	16	Circular	Latch Lock	-40 °C	105 ░C	UL94 V-0	4	Unshielded	10-3	IP68 IP69K	Plug Housing	Contacts Not Included	Crimp	For Female Sockets and Male Pins	Bulkhead - Rear Side Nut
Souriau-Sunbank by Eaton UTL5103G1S	Black	Keyed	Nylon Polyamide (PA)	16	Circular	Latch Lock	-40 °C	105 ░C	UL94 V-0	4	Unshielded	10-3	IP68 IP69K	Plug Housing	Contacts Not Included	Crimp	For Female Sockets and Male Pins	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Plug Housing Panel Mount
