62691-2
ActiveTE Connectivity AMP Connectors

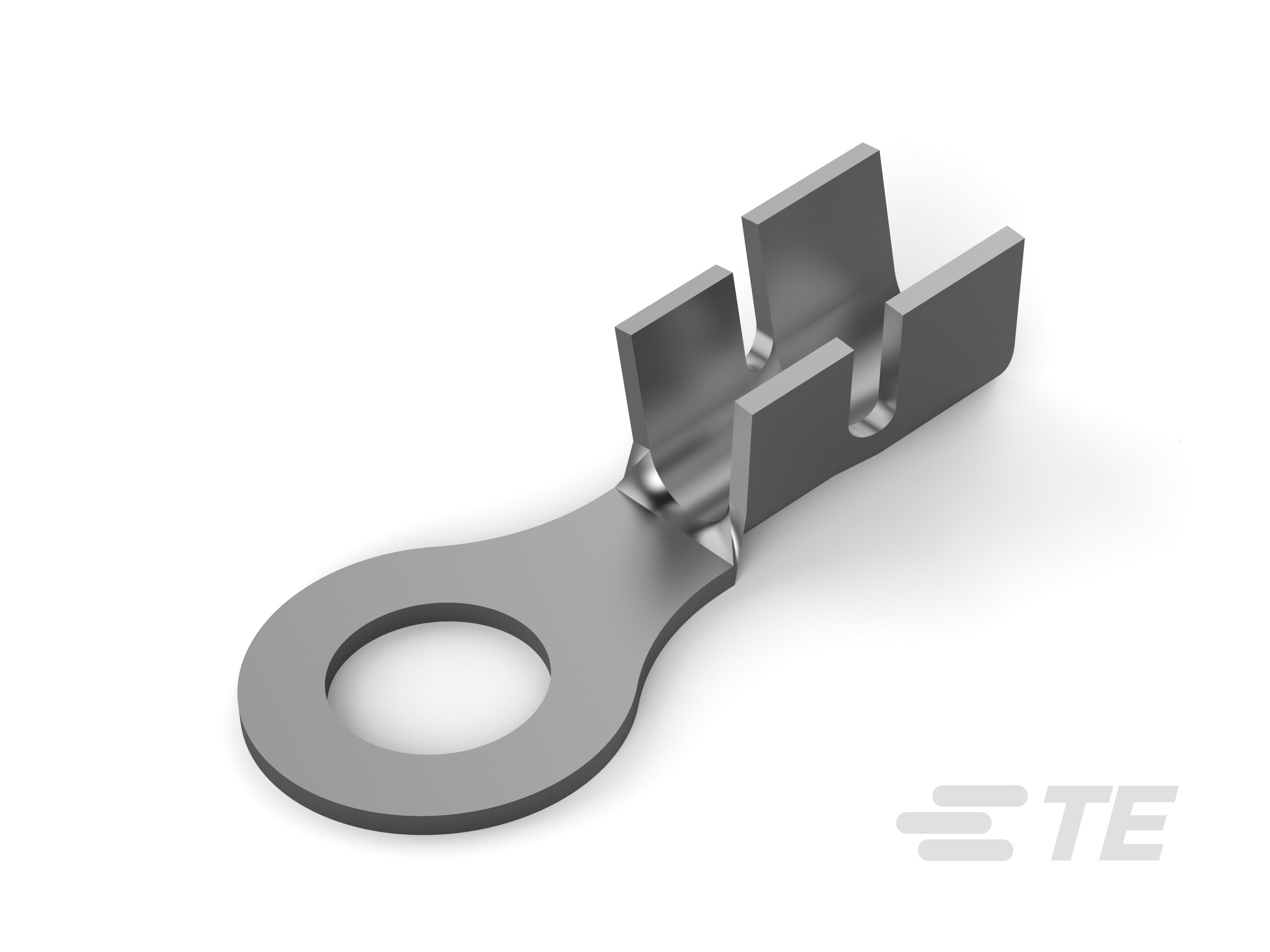

RING TONGUE TERMINAL, 1/4", 10 AWG, 5.26 MM²
62691-2
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, 1/4", 10 AWG, 5.26 MM²
Description
General part information
62691 Series
Closed Ring Tongue Terminal, 12 – 10 AWG, 1/4 Stud, 6.73 mm [.265 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 62691-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.21 in |
| Insulation Diameter (Min) | 0.15 in |
| Length - Overall | 1.05 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.47 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
