145275-2

Obsolete

TE Connectivity Raychem Cable Protection

CONN NLX FMALE 340POS 0.100 GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN NLX FMALE 340POS 0.100 GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	145275-2

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	NLX
Color	Brown
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	74
Number of Positions/Bay/Row [custom]	48
Number of Positions/Bay/Row [custom]	48
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder, Staggered

Part	Termination	Contact Finish	Mounting Type	Number of Rows	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Material - Insulation	Contact Material	Card Thickness	Card Thickness	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
TE Connectivity Raychem Cable Protection 145275-2	Solder Staggered	Gold	Through Hole	2	Brown	NLX	15 µin	0.38 µm	2.54 mm	0.1 in	0 °C	85 °C	Dual	Thermoplastic	Phosphor Bronze	0.062 in	1.57 mm	Female	74	48	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

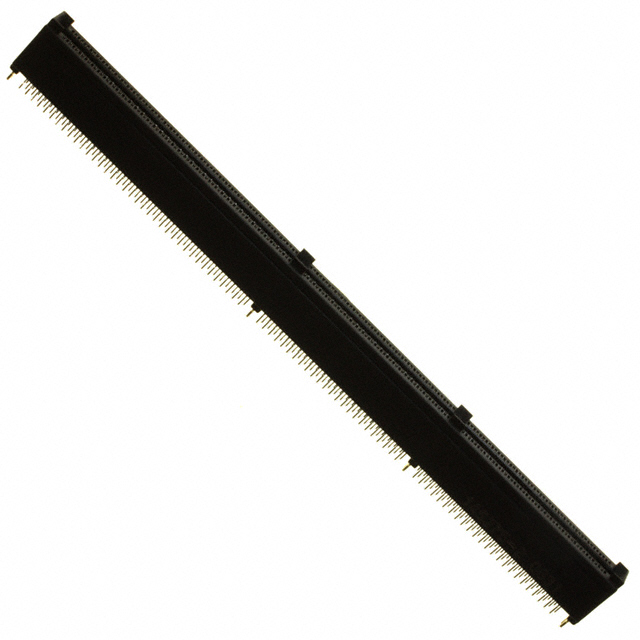

340 Position Female Connector NLX Gold 0.100" (2.54mm) Brown
