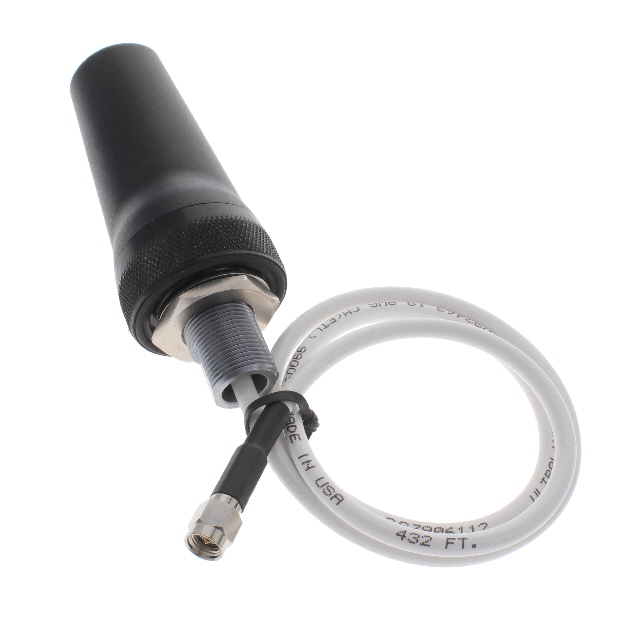

HCF69273BN-60A
ActiveTE Connectivity Raychem Cable Protection
M2M,HCF,LTE ULINK,SMA TOP LOADED MONOPLO
Deep-Dive with AI
Search across all available documentation for this part.
HCF69273BN-60A
ActiveTE Connectivity Raychem Cable Protection
M2M,HCF,LTE ULINK,SMA TOP LOADED MONOPLO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HCF69273BN-60A |
|---|---|
| Antenna Type | Dome |
| Applications | General Purpose |
| Features | 608 mm |
| Features | Cable |
| Frequency (Center/Band) | 1.92 GHz, 2.045 GHz, 761 MHz, 859 MHz, 2.6 GHz, 2.4 GHz, 1.785 GHz, 920 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.7 GHz, 960 MHz |
| Frequency Range [Min] | 698 MHz, 1.69 GHz |
| Gain | 3.3 dBi, 3.4 dBi, 3.6 dBi, 1.5 dBic, 1.2 dBi, 3.8 dBi, 3.5 dBi |
| Height (Max) [Max] | 3.15 in |
| Height (Max) [Max] | 80 mm |
| Ingress Protection | IP67 |
| Number of Bands | 8 |
| Power - Max [Max] | 10 W |
| VSWR | 2.6, 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.19 | |
| 10 | $ 38.43 | |||
| 25 | $ 36.82 | |||
| 100 | $ 33.37 | |||
| 250 | $ 32.22 | |||
Description
General part information
HCF69273 Series
Dome/Puck Antenna, Multi Band, Cellular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
